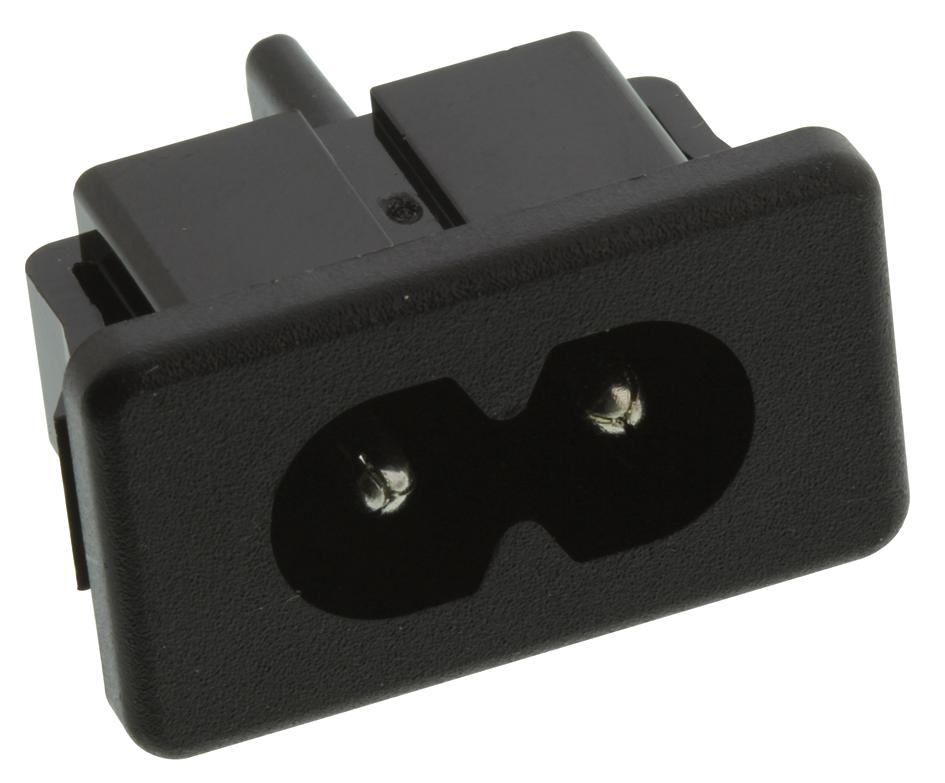

QUALTEK ELECTRONICS 771WX201 IEC Power Inlet
This IEC 320 power inlet is designed for low current applications, rated up to 2.5A at 250VAC. It features a snap-in mounting suitable for panel thicknesses of 0.6 to 1.5 mm and solder tab terminals for secure connections. The inlet meets IEC 320-C8 standards, approved by UL, CSA, and VDE, and complies with RoHS regulations. Its thermoplastic housing and copper alloy terminals ensure durability, with an insulation resistance over 100 ohms at 500V DC and dielectric strength of 2000V AC for one minute, making it ideal for reliable power connections in compact electronic devices.
QUALTEK ELECTRONICS 771WX201 IEC Power Inlet Specifications:
- Material: Thermoplastic housing
- Terminal: Copper alloy, tin-plated, t=0.3mm
- Rating: 2.5A 250V AC
- Insulation Resistance: Over 100 ohms at 500V DC
- Dielectric Strength: 2000V AC for one minute
- Panel Thickness: 0.6~1.5 mm
- Approval: UL, CSA, VDE
- RoHS Compliant
- Mounting: Snap-in
- Applicable Standard: IEC 320-C8
Buy the Qualtek Series IEC Power Inlet: 771WX201
Secure your electronic devices with the reliable IEC Power Inlet rated for 2.5A at 250VAC. Featuring snap-in mounting for easy installation, solder tabs for secure connections, and compliance with UL, CSA, and VDE standards. Made from durable thermoplastic with copper alloy terminals, this power inlet offers excellent insulation resistance and dielectric strength. Perfect for low-current applications where dependable power connectivity is essential. Purchase online today to enhance your device’s safety and performance with a RoHS-compliant, high-quality power inlet designed for panel thicknesses of 0.6 to 1.5 mm.
Order your Qualtek Series IEC Power Inlet 771WX201 today and ensure secure, reliable low-current power connections for your electronic projects.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS 771WX201?
You can click on the BUY or RFQ button to purchase 771WX201 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 771WX201?
You can download the 771WX201 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of 771WX201?
QUALTEK ELECTRONICS
