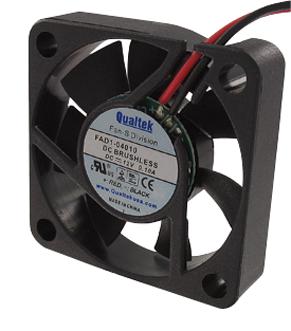

QUALTEK ELECTRONICS FAD104010BBMW11 DC Axial Fan
The FAD1-04010 series is a compact, high-performance DC axial fan designed for efficient cooling applications in electronic enclosures and industrial equipment. Featuring brushless DC motors with impedance protection, these fans are available with two ball or hydro dynamic bearings, ensuring extended lifespan of up to 70,000 or 50,000 hours respectively. The fans are constructed with UL 94V-0 plastic, offering durability and safety. Operating temperature ranges between -10°C to 70°C, with models capable of delivering airflows up to 6.2 CMM at speeds of 6000 rpm, making them ideal for reliable heat dissipation in confined spaces.
QUALTEK ELECTRONICS FAD104010BBMW11 DC Axial Fan Specifications:
- Frame Material: Plastic UL94V-0
- Impeller Material: Plastic UL94V-0
- Bearing Type: Two Ball or Hydro Dynamic
- Operating Temp: -10°C to 70°C
- Life Expectancy: Two Ball: 70,000 Hours, Hydro Dynamic: 50,000 Hours
- Rated Voltage: 12 VDC
- Current: 0.040 to 0.160 A depending on model
- Power: 0.48 to 1.08 W depending on model
- Speed: 3300 to 6800 rpm depending on model
- Airflow: 3.3 to 7.0 CMM
- Static Pressure: 0.044 to 0.170 InAq
- Noise Level: 14 to 29 dB/A
- Wire Leads: UL 1007 AWG 26, 300mm length
- Dimensions: 40x40x10 mm
Buy the Qualtek Series FAD1 04010 DC Axial Fan: FAD104010BBMW11
Purchase the durable and high-efficiency DC axial fan from Qualtek online today. With a compact 40x40x10 mm size, it features brushless DC motors, UL94V-0 plastic housing, and a lifespan of up to 70,000 hours. Ideal for electronic cooling, industrial enclosures, and other cooling solutions, this fan provides excellent airflow up to 7.0 CMM at 6000 rpm. Easy to install, reliable, and suitable for a wide range of temperature conditions, making it a vital component for effective heat dissipation.
Buy Qualtek FAD104010BBMW11 now and experience unmatched reliability and performance with a compact design and extended lifespan.
