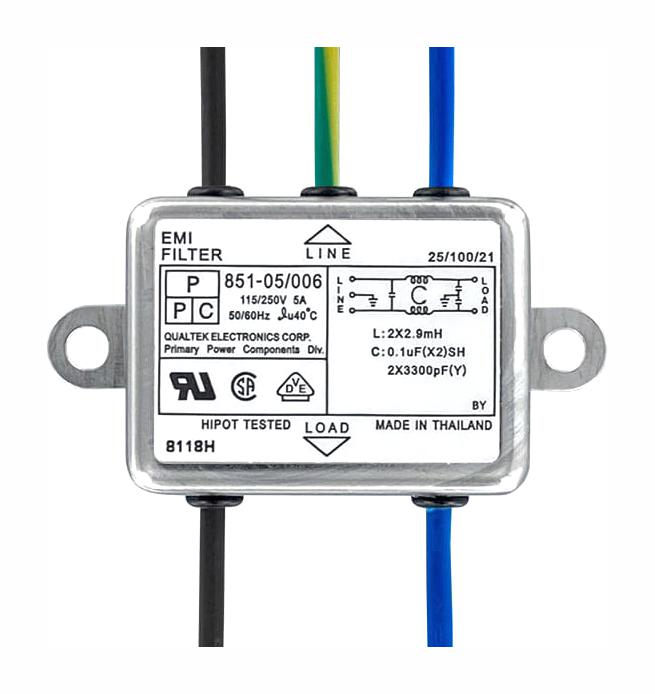

QUALTEK ELECTRONICS 85105006 EMI Filter
This chassis mount EMI filter is designed for general-purpose applications, providing reliable noise suppression in electronic systems. It features leads without quick connect terminals, and supports an amperage rating of 5A. The filter operates at 50/60Hz with a voltage rating of 115/250VAC, and has a minimum insertion loss of 4.0 dB at 50 MHz. Its dimensions are approximately 1.33 inches in length, 1.77 inches in width, and 0.79 inches in height, making it suitable for various industrial and electronic devices requiring EMI noise filtration.
QUALTEK ELECTRONICS 85105006 EMI Filter Specifications:
- Voltage Rating: 115/250VAC
- Current Rating: 5A
- Operating Frequency: 50/60Hz
- Leakage Current: 0.25 mA at 115VAC, 0.45 mA at 250VAC
- Minimum Insertion Loss: 4.0 dB at 50 MHz
- Dimensions: Length 1.33 inches, Width 1.77 inches, Height 0.79 inches
- Operating Temperature: 5°C to +100°C
- RoHS Compliant
- Part Number: 85105006
Buy the Qualtek Series EMI Filter Chassis Mount: 85105006
Enhance your electronic systems with this high-quality EMI filter designed for general-purpose applications. Supporting 5A current and operating at 115/250VAC, it effectively reduces electromagnetic interference. Its compact dimensions of approximately 1.33 inches in length, 1.77 inches in width, and 0.79 inches in height make installation straightforward. Built to meet RoHS compliance, this filter provides reliable noise suppression, ensuring your devices operate smoothly and efficiently. Purchase online now and safeguard your sensitive electronics with proven EMI filtering technology.
Order your Qualtek Series EMI Filter 85105006 today and ensure dependable noise filtering for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS 85105006?
You can click on the BUY or RFQ button to purchase 85105006 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part 85105006?
You can download the 85105006 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of 85105006?
QUALTEK ELECTRONICS
