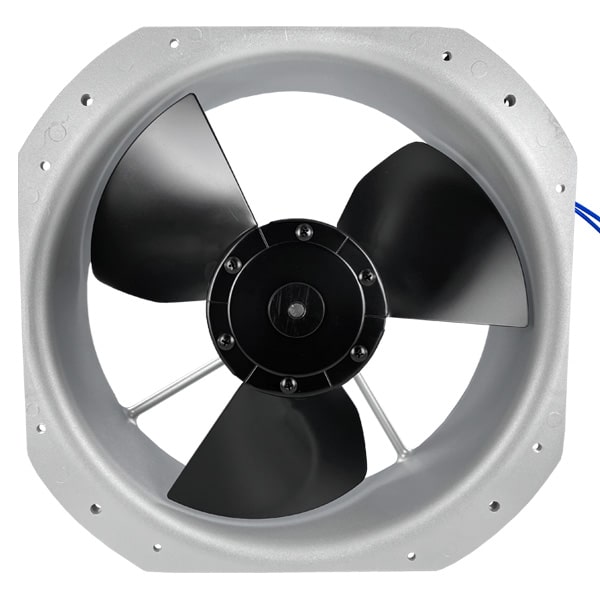

QUALTEK ELECTRONICS FDA228080NBHK4F Axial AC Fan
The QUALTEK ELECTRONICS FDA2-28080NBHK4F is a high-performance axial AC fan engineered for demanding industrial environments. Equipped with an external rotor capacitor-run induction motor and thermal protection, this fan ensures reliable operation. The aluminum alloy frame and steel impeller provide durability, while the terminal block connection simplifies installation. Certified IP54, it's protected against dust and splashing water, making it suitable for a wide range of applications requiring efficient and dependable cooling. Available with a lifespan of 50,000 or 100,000 hours.
QUALTEK ELECTRONICS FDA228080NBHK4F Axial AC Fan Specifications:
- Series: 280x280x80mm
- Motor Type: External Rotor Capacitor-Run Induction Motor
- Motor Protection: Thermal Protected
- Bearing Type: Two Ball
- Connection: Terminal Block
- Frame Material: Aluminum Alloy
- Impeller Material: Steel
- IP Rating: IP54
- Operating Temperature: -20°C~70°C
- Life Expectancy: 50,000 Hours / 100,000 Hours
- Rated Voltage: 115 VAC
- Rated Frequency: 50/60 Hz
- Rated Current: 0.81/1.20 A
- Rated Power: 94.0/136.0 W
- Rated Speed: 2650/2900 RPM
- Airflow: 29.15/32.55 CMM (1030/1150 CFM)
- Static Pressure: 0.925/0.807 InAq (23.5/20.5 mmAq)
- Noise Level: 70.0/73.0 dB/A
- Weight: 3050 g
