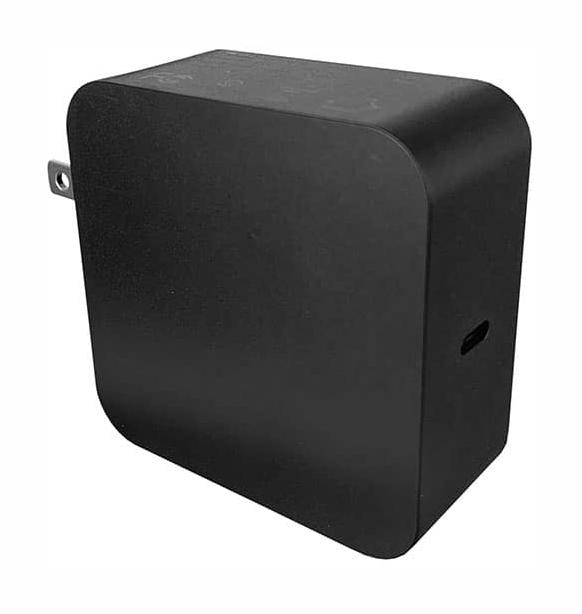

QUALTEK ELECTRONICS QFWC6020USCR USB Power Supply
The QFWC-60 series is a 60-watt USB Type C power supply with universal AC input (100-240VAC) and energy efficiency Level VI. It features a folding power plug, comprehensive protection including SCP, OCP, and OVP, and a low no-load power consumption below 0.1W. The device supports multiple DC output voltages (9V, 12V, 15V, 20V) with a rated current of 3A, and has a ripple and noise of 200mV max. Its compact dimensions are 65.5x65.5x29mm, with a typical MTBF exceeding 50,000 hours, making it ideal for industrial and electronic applications requiring reliable power solutions.
QUALTEK ELECTRONICS QFWC6020USCR USB Power Supply Specifications:
- Power Output: 60 Watts
- Input Voltage: 100VAC~240VAC
- Frequency Range: 50Hz-60Hz
- Efficiency: DoE Level VI
- Output Voltages: 9V, 12V, 15V, 20V
- Rated Current: 3A for all outputs
- Ripple and Noise: 200mV Max
- Dimensions: 65.5x65.5x29mm
- MTBF: More than 50,000 hours at 25°C
- Protection: Short Circuit, Over Voltage, Over Current
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 80°C
- Compliance: EN55032 Class B, FCC Part 15, IEC61000-4 series
- Leakage Current: 0.25mA @ 264VAC
- Dielectric Withstand: 3000VAC/10mA
Buy the Qualtek QFWC-60 Series – Reliable USB Type C Power Supply for Industrial Applications
Secure the reliable power solution your projects deserve with the QFWC-60 series USB Type C power supply. Featuring universal input, multiple voltage options, and protection features, this compact device ensures efficient and safe operation across various industrial and electronic applications. Its low no-load power consumption and high MTBF of over 50,000 hours make it ideal for demanding environments. Purchase online today to benefit from fast delivery and enjoy the peace of mind provided by a trusted quality power supply designed for durability and performance.
Order your Qualtek Series QFWC-60-20 USB Type C power supply today and ensure your projects have a dependable and efficient power source.
