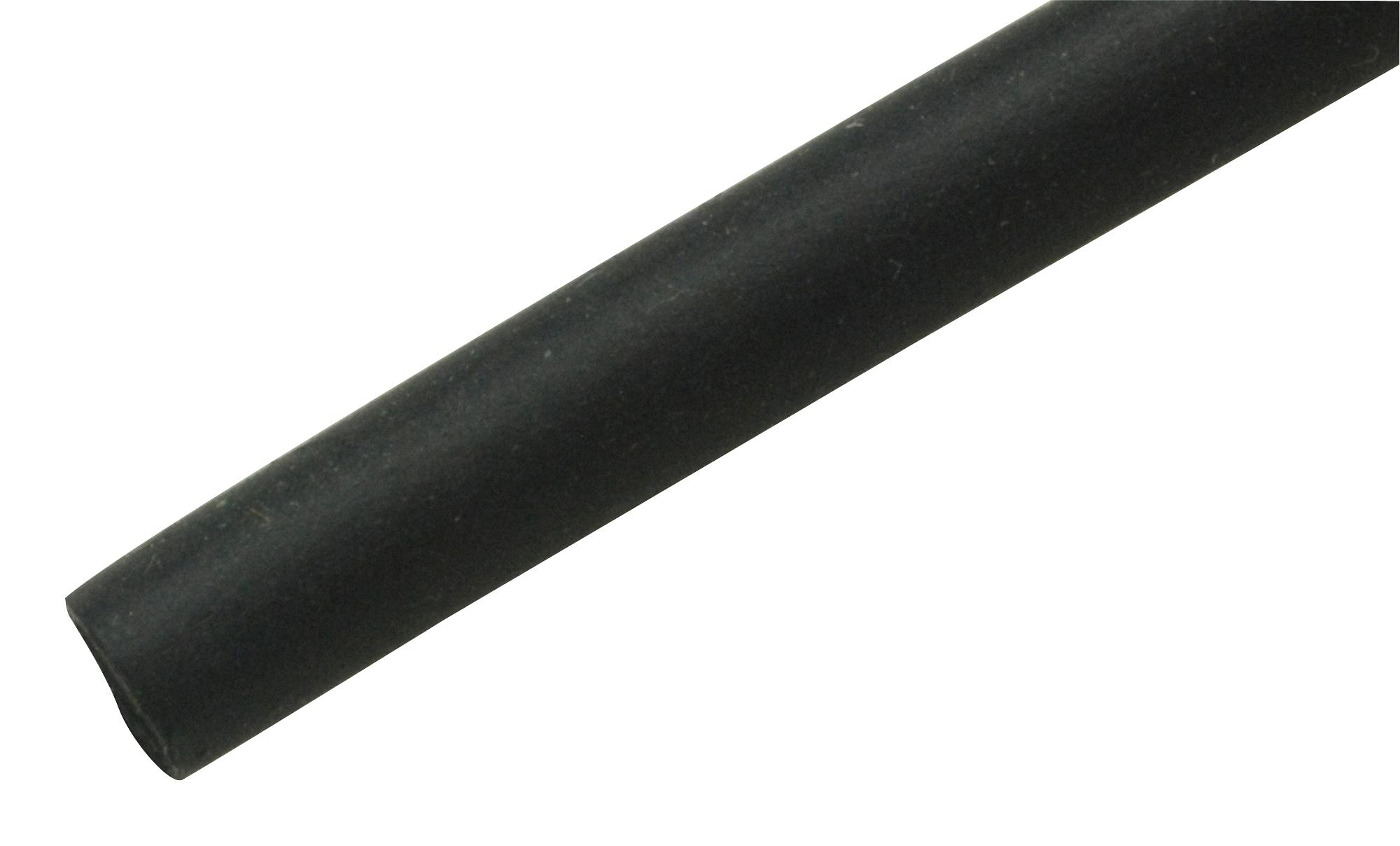

QUALTEK ELECTRONICS Q2F11201MS50FT Heat Shrink Tubing
Heat shrink thin wall tubing Q2-F offers a reliable and environmentally friendly solution for electrical insulation in industrial and military applications. It withstands extreme temperatures from -55°C to +135°C, providing excellent resilience, high tensile strength, and elongation. The tubing meets multiple safety and environmental standards, including RoHS compliance and flame retardancy. It is suited for bundling wires, color coding, and protecting connectors, splices, and inline components with its flexible, low smoke, and no PBB or lead features, making it ideal for diverse electrical and electronic projects.
QUALTEK ELECTRONICS Q2F11201MS50FT Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Full recovery temperature: 100°C
- Minimum shrink temperature: 70°C
- Tensile Strength: >14 MPa
- Ultimate Elongation: >600%
- UL 224 045% longitudinal shrinkage
- Eccentricity: <30%
- Dielectric Strength: >20kV/mm
- Volume Resistance: >10^11 Ω·cm
- Flammability: Passes VW-1, UL 94 V-0
- Approval Standards: ku File No. E236137, File No. 242540, SAE-AMS-DTL-23053/5 Class 1 & 3, Sony-SS-00259
- Material: No PBB’s, PBBO’s, PBBEs, Cadmium & Lead free
- Color options: Black, red, blue, yellow, green, white, clear
Buy the Qualtek Q2F11201MS50FT – Reliable Heat Shrink for Industrial Applications
Order Qualtek Q2F11201MS50FT heat shrink tubing online today to benefit from its superior insulation, flame retardancy, and environmental friendliness. Designed for versatility, it provides reliable protection for wires, connectors, and inline components in industrial and military environments. Its flexibility ensures easy installation, while its high temperature resistance and certification standards guarantee safety and durability. Perfect for bundling wires, color coding, or protecting sensitive electronic components, this tubing offers excellent resilience and peace of mind for all your electrical applications.
Get Qualtek Q2F11201MS50FT today—built for precision, flexibility, and long-lasting durability in electrical insulation.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS Q2F11201MS50FT?
You can click on the BUY or RFQ button to purchase Q2F11201MS50FT from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part Q2F11201MS50FT?
You can download the Q2F11201MS50FT datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of Q2F11201MS50FT?
QUALTEK ELECTRONICS
