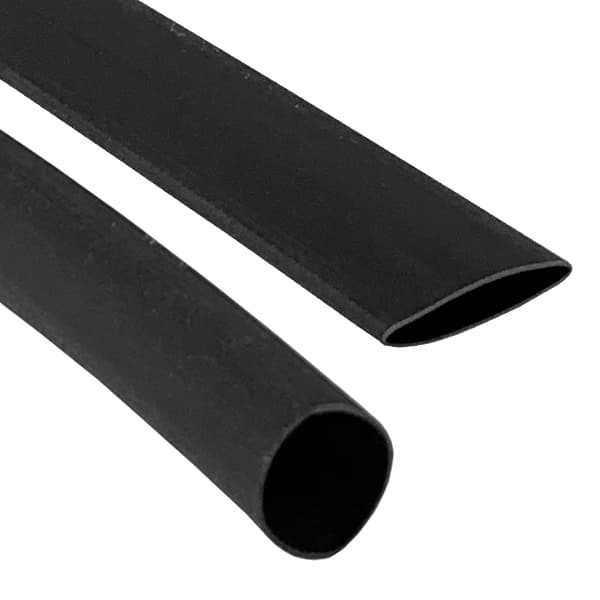

QUALTEK ELECTRONICS Q2F36401MS100FT Heat Shrink Tubing
The Qualtek Q2-F series heat shrink tubing is a versatile solution for electrical insulation and component protection in a wide range of applications, including commercial and military settings. This flexible, flame-retardant tubing offers a 2:1 shrink ratio, providing a secure and durable covering for wires, cables, terminals, and in-line components. It's designed to withstand temperatures from -55°C to +135°C and meets various industry standards, including SAE-AMS-DTL-23053/5 and Sony-SS-00259. Available in standard colors like black, red, blue, yellow, green, white, and clear, this tubing ensures reliable performance and easy identification. Custom sizes, packaging, and colors are available upon request.
QUALTEK ELECTRONICS Q2F36401MS100FT Heat Shrink Tubing Specifications:
- Operating Temperature: IEC 216: -55°C to +135°C
- Tensile Strength: ASTM D 2671: >14 MPa
- Ultimate Elongation: ASTM D 2671: > 600%
- Longitudinal Shrinkage: UL 224: 0+5%
- Eccentricity: UL 224: < 30%
- Heat Aging Tensile Strength: 175°C, 168 hrs.: > 11 MPa
- Heat Aging Ultimate Elongation: 175°C, 168 hrs.: > 350 %
- Flammability: VW-1: Pass
- Dielectric Strength: ASTM D 150: >20kV / mm
- Voltage Withstand: ASTM D 2671 / AC2500V. 1 min.: No Breakdown
- Volume Resistance: ASTM D 876: 14 >10 Ω.cm
- Copper Stability: UL 224: Pass
- Copper Corrosion: UL 224: No Corrosion
- Material: Free of PBB’s, PBBO’s, PBBE’s, Cadmium & Lead
- Standard Colors: Black, red, blue, yellow, green, white, clear
