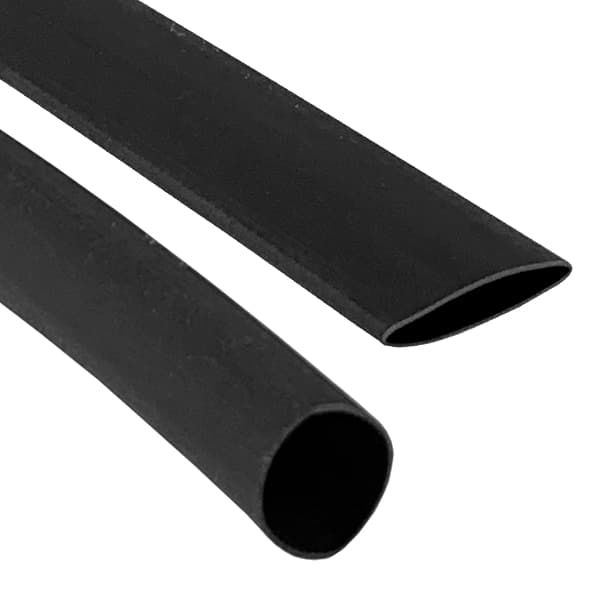

QUALTEK ELECTRONICS Q2F11601SS1000FT Flexible Heat Shrink Tubing
The Qualtek Q2-F series heat shrink tubing is a versatile solution for electrical insulation and component protection across various industries. Its flexible design, high flame retardancy, and 2:1 shrink ratio make it ideal for applications such as wire and cable management, terminal protection, and in-line component insulation. Meeting standards like SAE-AMS-DTL-23053/5 and Sony-SS-00259, this tubing ensures reliable performance and durability. Available in a range of standard colors and sizes, it can also be customized to meet specific project requirements.
QUALTEK ELECTRONICS Q2F11601SS1000FT Flexible Heat Shrink Tubing Specifications:
- Operating Temperature: IEC 216: -55°C to +135°C
- Tensile Strength: ASTM D 2671: >14 MPa
- Ultimate Elongation: ASTM D 2671: > 600%
- Longitudinal Shrinkage: UL 224: 0+5%
- Eccentricity: UL 224: < 30%
- Heat Aging Tensile Strength: 175°C, 168 hrs.: > 11 MPa
- Heat Aging Ultimate Elongation: 175°C, 168 hrs.: > 350 %
- Flammability: VW-1: Pass
- Dielectric Strength: ASTM D 150: >20kV / mm
- Voltage Withstand: ASTM D 2671 / AC2500V. 1 min.: No Breakdown
- Volume Resistance: ASTM D 876: 14 >10 Ω.cm
- Copper Stability: UL 224: Pass
- Copper Corrosion: UL 224: No Corrosion
- Material: Free of PBB’s, PBBO’s, PBBE’s, Cadmium & Lead
- Standard Colors: Black, red, blue, yellow, green, white, clear
Buy the Q2-F-1/16-01-SS1000FT QUALTEK ELECTRONICS Flexible Heat Shrink Tubing | myMectronic
Securely purchase Qualtek Q2-F-1/16-01-SS1000FT heat shrink tubing online for reliable electrical insulation and protection.
Buy Now
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS Q2F11601SS1000FT?
You can click on the BUY or RFQ button to purchase Q2F11601SS1000FT from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part Q2F11601SS1000FT?
You can download the Q2F11601SS1000FT datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of Q2F11601SS1000FT?
QUALTEK ELECTRONICS
