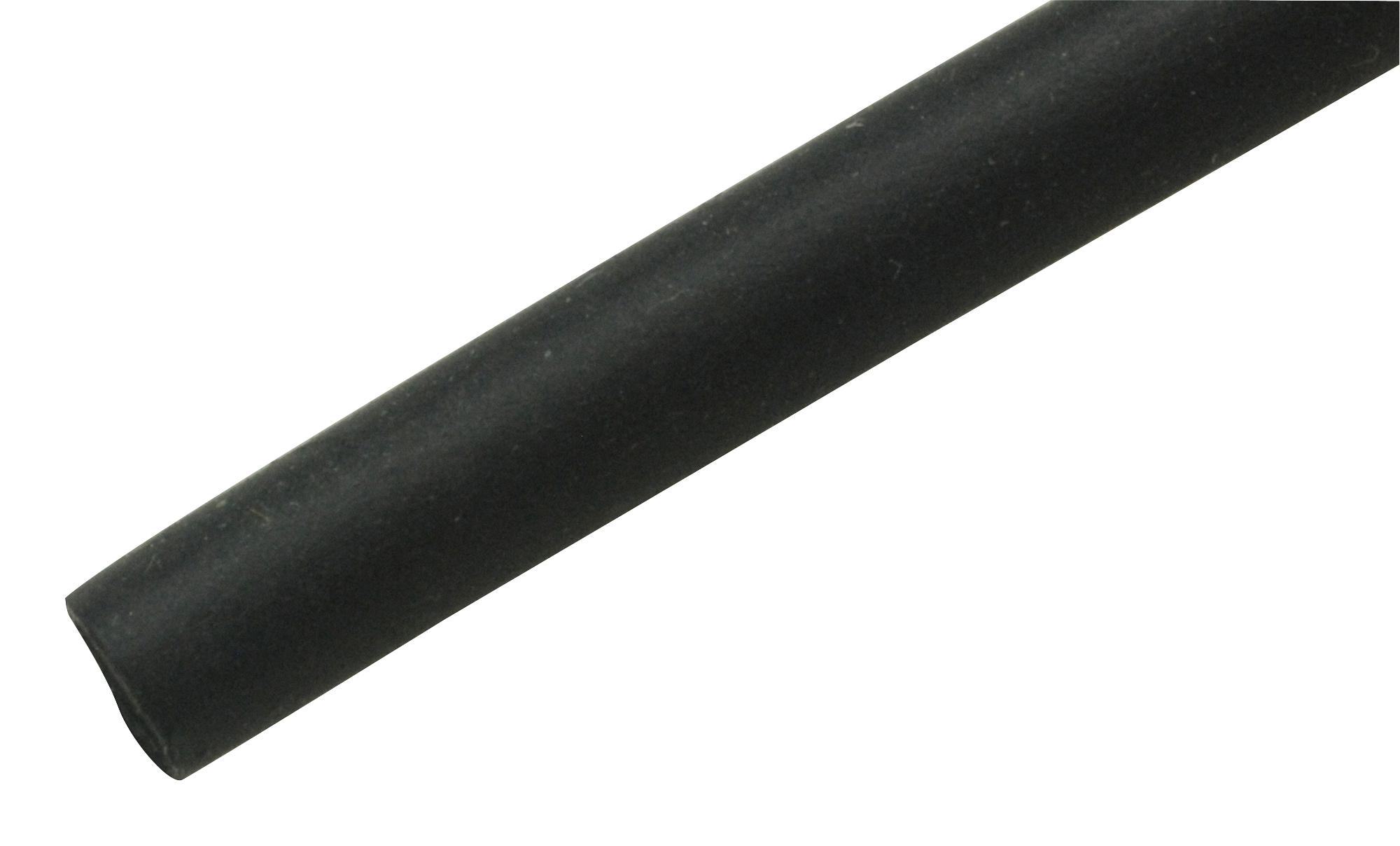

QUALTEK ELECTRONICS Q2F1201QB48IN5 Heat Shrink Tubing
Heat shrink thin wall tubing offers flexible, flame-retardant insulation protection for electrical components and wiring in commercial and military applications. It provides high resilience, excellent durability, and compliance with RoHS standards. Suitable for bundling wires, color-coding, and insulating in-line connections, this tubing withstands temperatures from -55°C to +135°C, withstanding heat aging and moisture. It is UL and CSA approved, free of PBBs, PBBOs, PBBEs, cadmium, and lead. Colors include black, red, blue, yellow, green, white, and clear, fitting various electrical and aerospace needs.
QUALTEK ELECTRONICS Q2F1201QB48IN5 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 100°C
- Material: No PBBs, PBBOs, PBBEs, free of Cadmium & Lead
- Flammability: UL 94V-0, VW-1 approved
- Dielectric Strength: >20kV/mm
- Tensile Strength: >14 MPa
- Ultimate Elongation: >600%
- Eccentricity: <30%
- Volume Resistance: >10^10 Ω·cm
- Voltage Withstand: 2500V AC for 4 minutes
- Colors: Black, red, blue, yellow, green, white, clear
- Standard sizes: From 12 mm to 127 mm diameter, lengths up to 1000 ft
- Certifications: UL, CSA, RoHS compliant
Buy the Valtek Series Q2 Heat Shrink Tubing: Q2F1201QB48IN5
Purchase Valtek Series Q2F1201QB48IN5 heat shrink tubing online today for reliable electrical insulation in demanding environments. Its flexible, flame-retardant design ensures long-lasting protection for wires, terminals, and components. With excellent resilience, UV stability, and certified UL and CSA approval, this tubing is ideal for assembly, repair, and insulation in aerospace, automotive, and industrial applications. Enjoy quick delivery and competitive prices when you buy online—secure your high-quality heat shrink tubing now for durable electrical solutions.
Get Valtek Q2F1201QB48IN5 today—built for flexible insulation and high-temperature resilience in industrial and military wiring.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS Q2F1201QB48IN5?
You can click on the BUY or RFQ button to purchase Q2F1201QB48IN5 from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part Q2F1201QB48IN5?
You can download the Q2F1201QB48IN5 datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of Q2F1201QB48IN5?
QUALTEK ELECTRONICS
