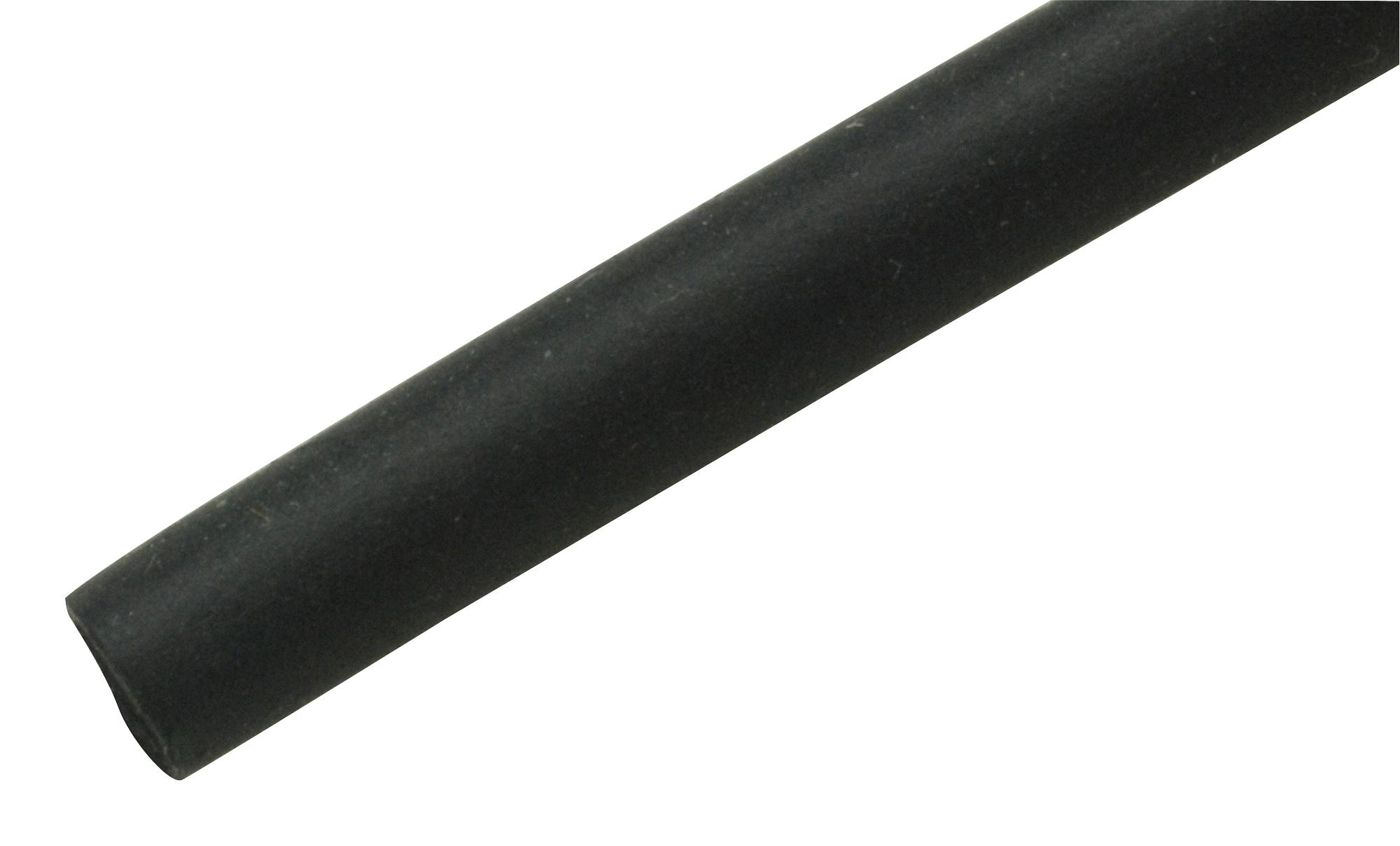

QUALTEK ELECTRONICS Q2F201QB48IN5 Heat Shrink Tubing
This heat shrink thin wall tubing offers excellent electrical insulation, high flame retardancy, and flexibility. Suitable for military and commercial wiring, it protects in-line components, splice connections, and bundles wires for flexible harnesses. Operating between -55°C and +135°C, it features a shrinks ratio of 2:4, with full recovery at 100°C and minimal eccentricity. Made from RoHS-compliant, environmentally friendly materials free of PBBs, lead, and cadmium. Available in multiple standard colors, it meets industry standards like SAE-AMS-DTL-23053/5 and UL certifications, ensuring durability and safety in various applications.
QUALTEK ELECTRONICS Q2F201QB48IN5 Heat Shrink Tubing Specifications:
- Material: RoHS compliant, no PBBs, PBBOs, PBBEs, free of cadmium & lead
- Operating Temperature: -55°C to +135°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 100°C
- Shrink Ratio: 2:4
- Tensile Strength: >14 MPa
- Ultimate Elongation: >600%
- Dielectric Strength: >20kV/mm
- Voltage Withstand: AC2500V for 4 minutes without breakdown
- Volume Resistance: >10^10 Ω·cm
- Flammability: UL 94V-0 pass
- Eccentricity: <30%
- Color options: Black, red, blue, yellow, green, white, clear
- Certifications: UL, CSA, SAE-AMS-DTL-23053/5 Class 1 & 3, VW-1, 600V
- Dimensions (various sizes, e.g., Wall Thickness: 0.40-0.68 mm, Diameter: 6-75 mm, Length: 50-1000 ft)
Buy the Buy Eco-Friendly Heat Shrink Thin Wall Tubing Part Number Q2F201QB48IN5 Online
Discover high-quality heat shrink tubing designed for exceptional electrical insulation, flame retardance, and flexibility. Perfect for military, industrial, and electronic applications. This tubing provides excellent resilience, protecting inline components, splices, and cables with a shrink ratio of 2:4. Operating safely from -55°C to +135°C, it passes all major industry certifications, including UL and CSA. Made from environmentally friendly materials free of harmful PBBs, lead, and cadmium, it ensures durability and safety in demanding environments. Available in multiple colors and sizes, order online today for fast delivery and reliable performance.
Buy Eco-Friendly Heat Shrink Thin Wall Tubing Q2F201QB48IN5 now and experience unmatched flexibility, flame retardancy, and reliable electrical insulation.
