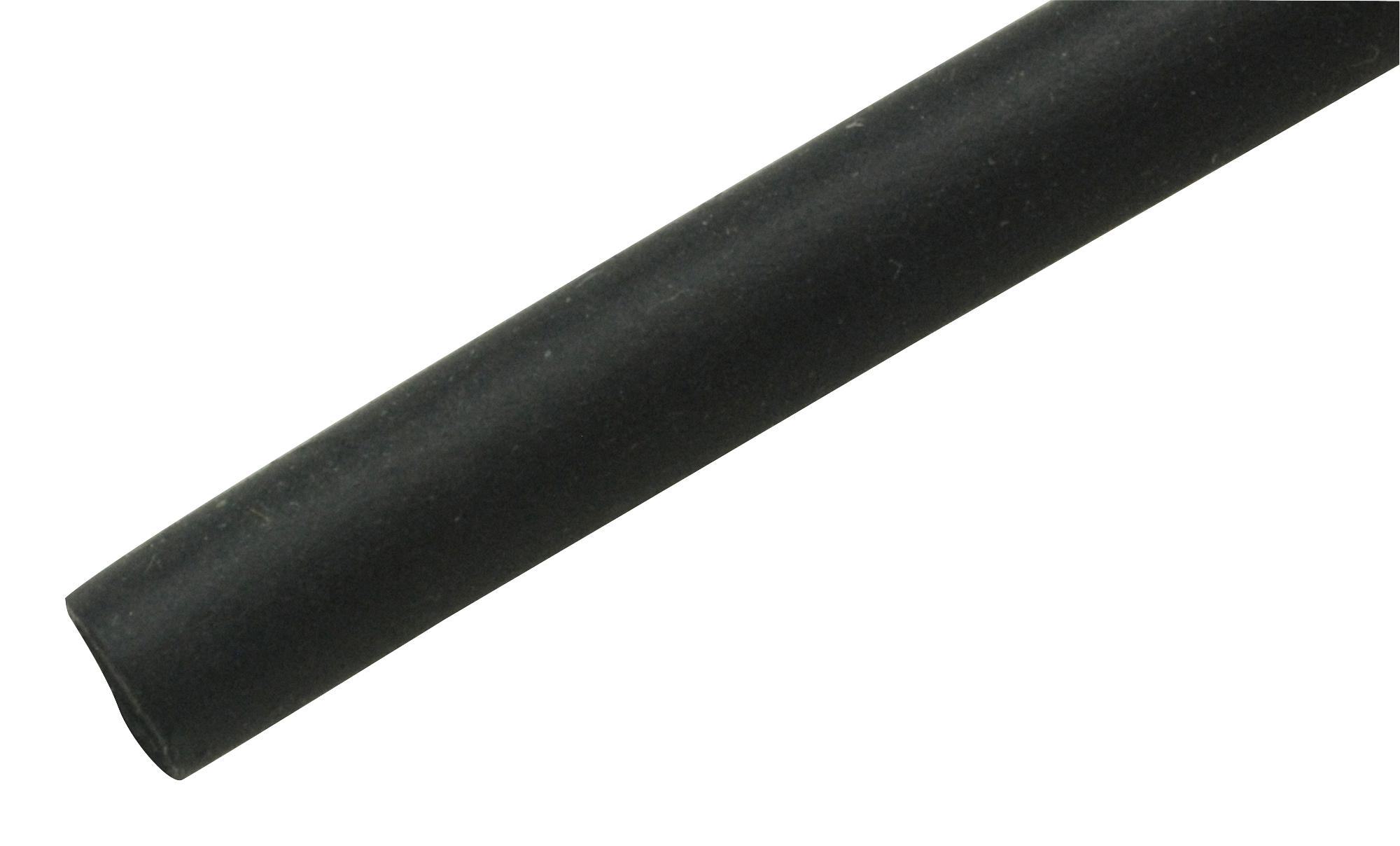

QUALTEK ELECTRONICS Q2F5801SS200FT Heat Shrink Tubing
Heat shrink thin wall tubing Q2-F offers flexible, environmentally friendly insulation for electrical components, cables, and wires. Designed for military and commercial applications, it withstands temperatures from -55°C to +135°C and meets flame retardant standards. With a shrink ratio of 2:4, it provides excellent resilience, tensile strength over 14 MPa, and ultimate elongation exceeding 600%. Available in standard colors such as black, red, and blue, it is RoHS compliant, free of hazardous substances, and suitable for wire bundling, insulation, and identification in various demanding environments.
QUALTEK ELECTRONICS Q2F5801SS200FT Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Shrink Ratio: 2:4
- Material: No PBB's, PBBO's, PBBE’s, free of Cadmium & Lead
- Dielectric Strength: >20kV / mm
- Tensile Strength: >14 MPa
- Ultimate Elongation: > 600%
- Flammability: VW-1, Pass
- Voltage Withstand: AC2500V for 4 min, No Breakdown
- Volume Resistance: >10^10 Ω·cm
- Operating Temperature IEC: -55°C to +135°C
- Standard Colors: Black, Red, Blue, Yellow, Green, White, Clear (Class 2)
- Certification: UL, CSA, RoHS Compliant
- Wall Thickness: 0.40 mm to 0.68 mm depending on size
- Dimensions: Varied from 12 mm to 159 mm diameter, lengths available in 50 to 1000 feet packaging
Buy the Qualtek Series Q2 Heat Shrink Thin Wall Tubing: Q2F5801SS200FT
Order Qualtek Q2F5801SS200FT heat shrink tubing online today for reliable, high-performance electrical insulation. This flexible, flame-retardant tubing operates from -55°C to +135°C, offering excellent resilience and environmental safety. It is RoHS compliant, free of hazardous substances, and features a shrink ratio of 2:4 for easy installation and secure wiring in military and commercial environments. Available in multiple colors, it’s ideal for wire identification, insulation, and bundling, ensuring your electrical assemblies meet industry standards efficiently and securely.
Buy Qualtek Q2F5801SS200FT heat shrink tubing now and enjoy flexible, flame-retardant insulation for demanding electrical applications.
