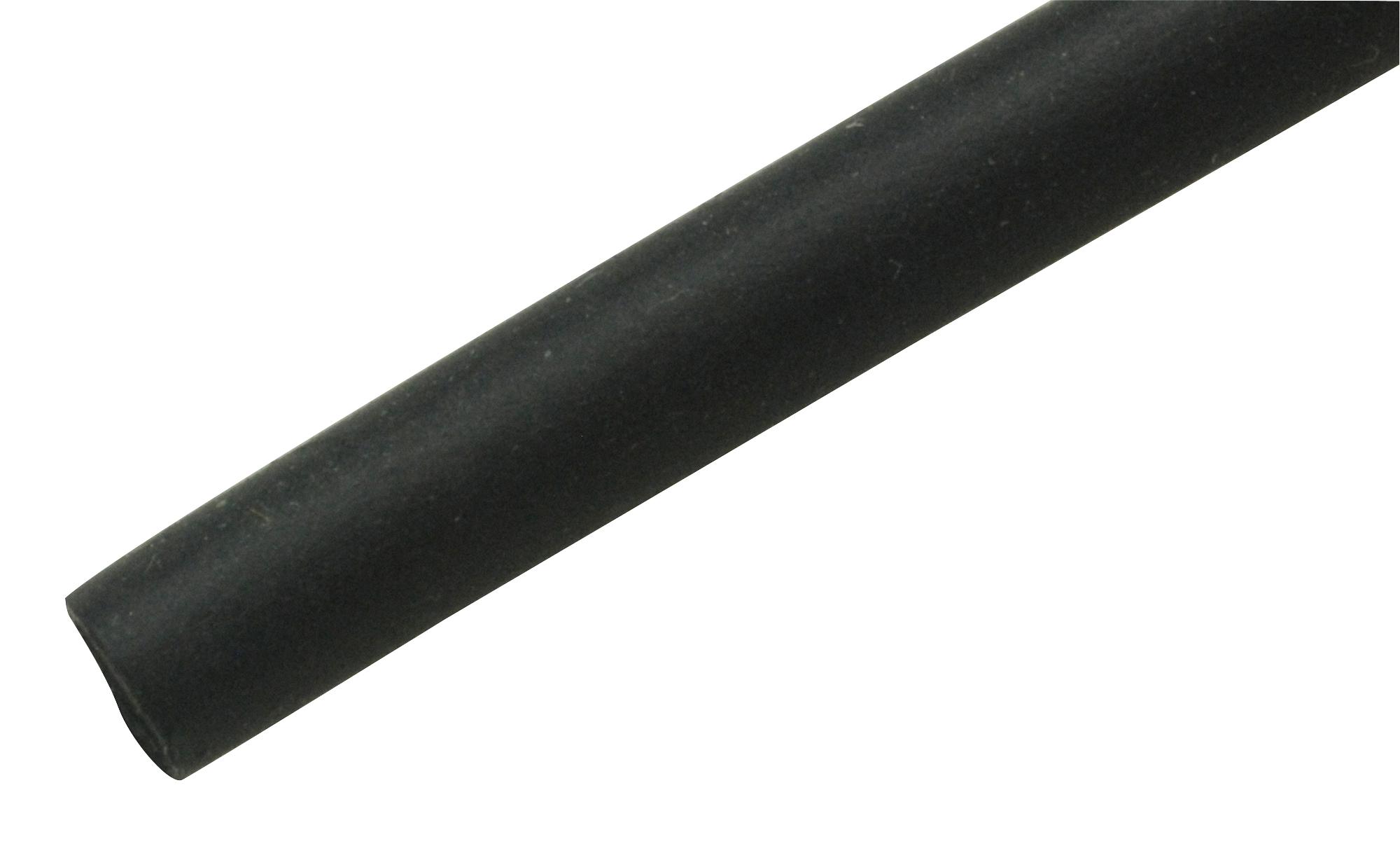

QUALTEK ELECTRONICS Q2F3801MS100FT Heat Shrink Tubing
Heat shrink thin wall tubing offers excellent electrical insulation, chemical resistance, and high flexibility, making it suitable for both commercial and military applications. Its high flame retardancy and environment-friendly materials ensure safe, durable protection for wiring, connectors, and splices. Designed to withstand operating temperatures from -55°C to +135°C, it provides reliable performance in harsh conditions. The tubing includes various color options for easy identification, conforming to RoHS standards and UL/CSA approvals, making it ideal for wire bundling, color-coding, and insulation tasks in various industries.
QUALTEK ELECTRONICS Q2F3801MS100FT Heat Shrink Tubing Specifications:
- Material: Environmentally friendly, no PBBs, PBBOs, PBBEs, free of Cadmium & Lead
- Operating Temperature: -55°C to +135°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 100°C
- Tensile Strength: >14 MPa
- Ultimate Elongation: > 600%
- Volume Resistance: >10^14 Ω·cm
- Dielectric Strength: >20 kV/mm
- Flammability: VW-1 pass
- Voltage Withstand: AC 2500V for 4 min
- Eccentricity: <30%
- Longitudinal Shrinkage: 45%
- Certifications: UL, CSA, RoHS compliant
- Colors: Black, red, blue, yellow, green, white, clear
- Manufactured with high flexibility and resilience for easy installation and durability
Buy the Quanttek Series Q2F Heat Shrink Tubing: Q2F3801MS100FT
Purchase Quanttek Series Q2F heat shrink tubing online to enjoy fast delivery and premium quality insulation solutions. This flexible, flame-retardant tubing is ideal for wire bundling, insulation, and color-coding in industrial, military, and commercial applications. Engineered to operate from -55°C to +135°C, it offers excellent resilience and environmental safety, free of hazardous substances. With UL and CSA approval, RoHS compliance, and versatile color options, buying online guarantees you a durable and reliable product suitable for demanding electrical tasks whether you need standard or custom sizes for your projects.
Order your Quanttek Series Q2F heat shrink tubing today and ensure reliable, high-quality insulation for your electrical projects.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS Q2F3801MS100FT?
You can click on the BUY or RFQ button to purchase Q2F3801MS100FT from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part Q2F3801MS100FT?
You can download the Q2F3801MS100FT datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of Q2F3801MS100FT?
QUALTEK ELECTRONICS
