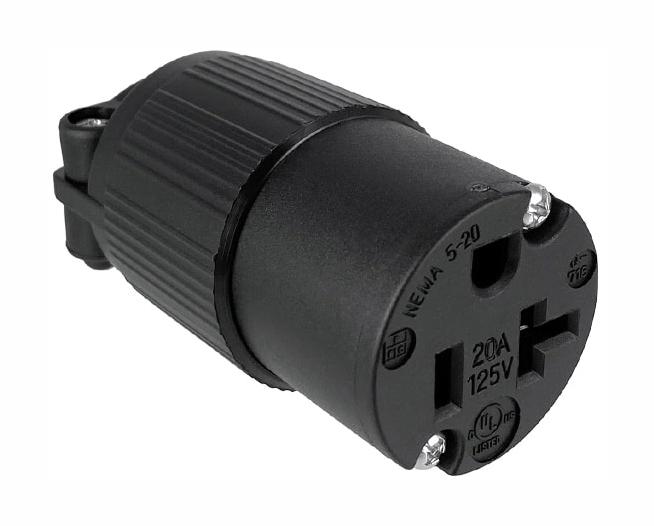

QUALTEK ELECTRONICS Q718 20A 125VAC Power Connector
The Qualtek Q-718 is a robust AC power connector designed for a variety of industrial and commercial applications. It is rated for 20A at 125VAC and features a cord clamp that accepts 18/3 - 12/3 cable. The connector’s terminals are clearly identified with color-coded screws for ground, line, and neutral connections, enhancing safety and simplifying installation. It is UL/cUL listed and RoHS compliant, ensuring adherence to industry standards and environmental regulations. This connector is ideal for power distribution in equipment, appliances, and other electrical devices.
QUALTEK ELECTRONICS Q718 20A 125VAC Power Connector Specifications:
- Rating: 20A 125VAC
- Color: Black
- Cord Clamp: Accepts 18/3 - 12/3 Cable
- Ground Terminal: Green, Marked 'GR'
- Line Terminal: Black
- Neutral Terminal: White, Marked 'W'
- UL/cUL Listed: E139592
- RoHS Compliant: Yes
- Dim Range (mm): 0-1 to 50-120
- Tolerance (mm): +/- 0.15 to +/- 0.90
- NEMA: 5-20R Straight Blade Device
- Unit: mm
