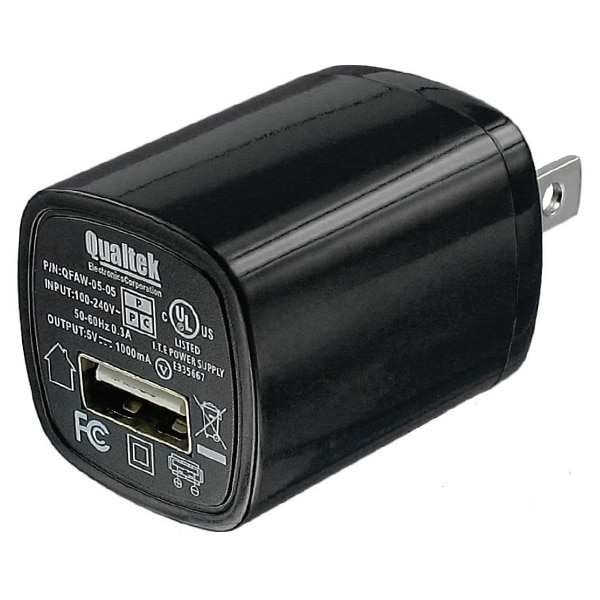

QUALTEK ELECTRONICS QFAW0505 Single Output USB Power Supply
The Qualtek QFAW-05-05 is a 5W single output AC-DC power supply designed for a wide range of applications. It offers universal AC input voltage (90VAC~264VAC) and boasts Level VI energy efficiency, minimizing power consumption and reducing environmental impact. Key features include over-load, over-voltage, and short-circuit protection, ensuring reliable operation and protecting connected devices. The compact dimensions (38.6x30x30mm) make it suitable for space-constrained designs. It is ideal for powering consumer electronics, industrial control systems, and other devices requiring a stable and efficient power source.
QUALTEK ELECTRONICS QFAW0505 Single Output USB Power Supply Specifications:
- Rated Current: 1A
- Ripple and Noise: 50mV
- Voltage Accuracy: ±10%
- Line Regulation: ±1.0%
- Load Regulation: ±5.0%
- Setup Time: <3.0s
- Hold-up Time: >10ms
- Efficiency: Level VI
- AC Current (max): 0.3A
- Inrush Current (Typical): 30A@100VAC Cold start, 75A@240VAC Cold start
- Operating Ambient Temp & Hum: -20°C~40°C; 20%~90% RH Non-Condensing
- Storage Temp & Hum: -20°C~75°C; 0%-90% RH Non-Condensing
- Safety Standards: UL60950-1
- EMI: FCCt 15 Cl B
- MTBF: More than 50,000Hrs
- Dimension: 38.6x30x30mm
