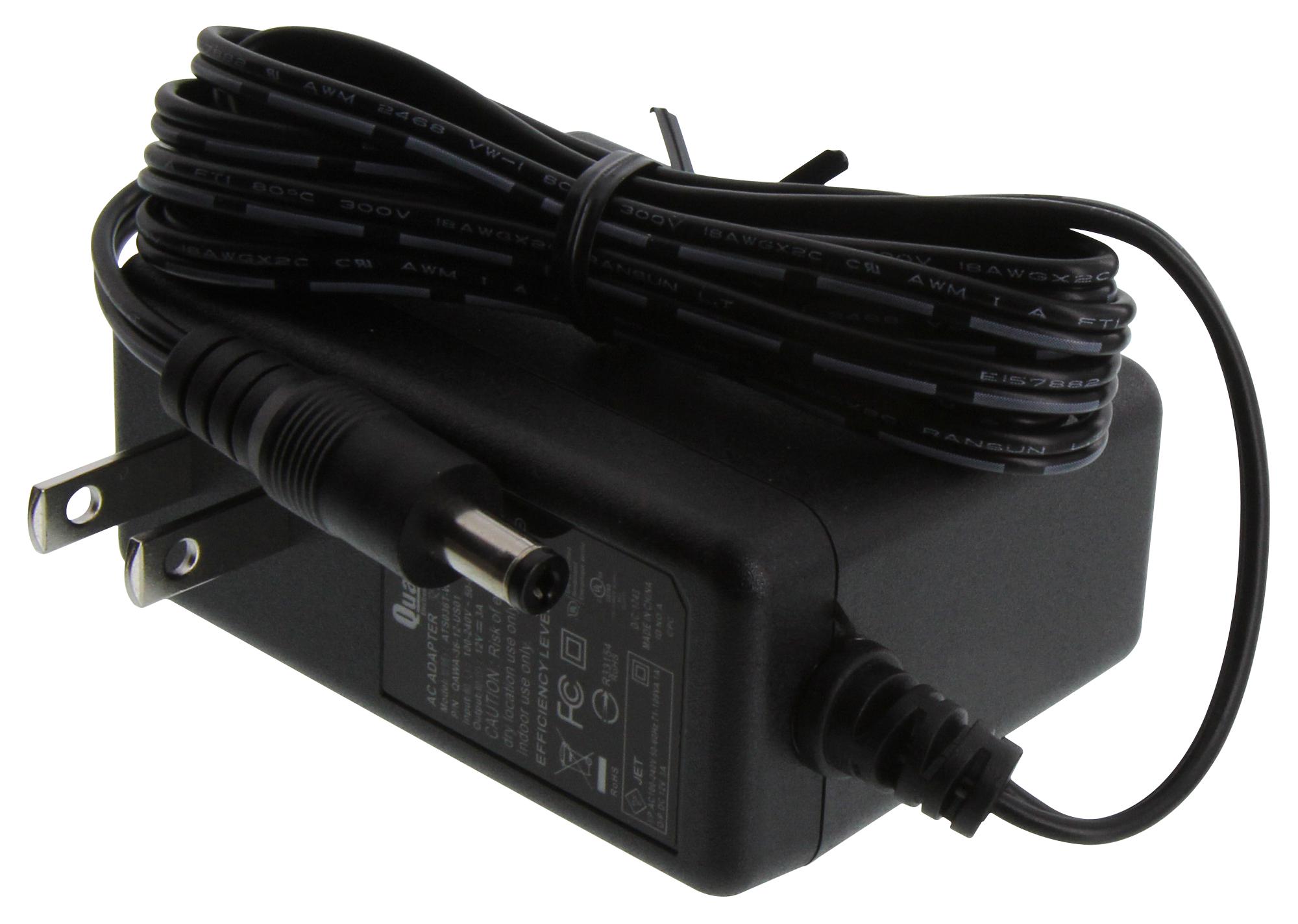

QUALTEK ELECTRONICS QAWA3612US01 Wall Mount Power Supply
The QAWA-30/36 Series is a reliable, energy-efficient single output wall mount power supply compliant with Energy Star, ErP Step 2, and UL 94V-0 standards. Featuring universal AC input, multiple output protections including OVP, SCP, and OCP, and a No Load Power Consumption of less than 0.1W, it is suitable for various industrial and electronic applications. With an operating temperature range of 0°C to 40°C, high efficiency, and compact size, this switching flyback power supply ensures safe, stable operation with a MTBF of 300,000 hours. It is available in multiple regional plug options for global use.
QUALTEK ELECTRONICS QAWA3612US01 Wall Mount Power Supply Specifications:
- Input Voltage Range: 100VAC~240VAC
- Input Frequency Range: 50Hz-60Hz
- Output Voltage Options: 75V, 85V, 12V, 13.5V, 15V, 16V, 18V, 24V, 48V
- Rated Current: 5.0A at 75V, 4.0A at 85V, 3.5A at 12V, 3.34A at 13.5V, 3.00A at 15V, 2.66A at 16V, 2.40A at 18V, 2.25A at 24V, 1.5A at 48V
- Efficiency: DoE Level VI, Energy Star, ErP Step 2, NRCan & GEMS Certified
- Dimensions: 79x34x74mm (US), 79x34x94mm (EU), 79x49x86mm (UK), 79x41x82mm (AU)
- Weight: 160g
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 80°C
- Topology: Switching Flyback
- Dielectric Withstand: 3000VAC Primary-Secondary
- EMI & Immunity: EN55022 Class B, EN61000-3-2, IEC61000-4
- MTBF: 300,000 hours
- Output Protections: Over Voltage, Short Circuit, Over Current
Buy the Qualtek Series QAWA 30/36 Watts Power Supply: QAWA3612US01
Order the Qualtek QAWA-30/36 Series wall mount power supply online today and enjoy a highly reliable, energy-efficient power source. Its compact size, comprehensive protections including over voltage, short circuit, and over current, along with compliance to global standards like Energy Star and ErP, make it ideal for various devices. Perfect for industrial electronics, this switching flyback power supply features universal input voltage, multiple regional plug options, and a long MTBF of 300,000 hours. Get yours now to ensure stable, safe operation of your equipment.
Buy Qualtek QAWA3612US01 power supply now and experience unmatched reliability and performance for your electronic and industrial applications.
