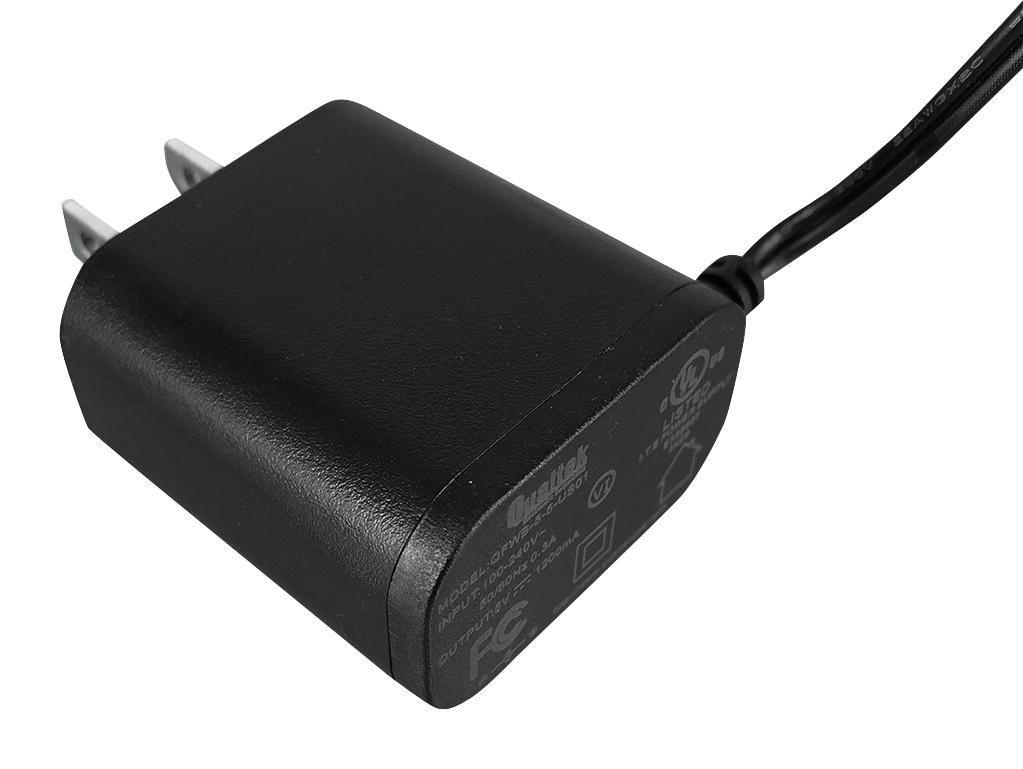

Qualtek Electronics QFWB512US01 Power Supply
The QFWB-5 Series is a 5-watt single output wall mount power supply designed for reliable performance in various electronic applications. It features universal AC input (100-240VAC), high energy efficiency compliant with Level VI standards, and includes output protections such as SCP and OCP. The unit boasts low no-load power consumption (<0.1W), a compact 42x23.7x42mm form factor, and a robust MTBF of 50,000 hours. Ideal for industrial, automation, and control systems, it offers stable voltage outputs between 5V and 24V.
Qualtek Electronics QFWB512US01 Power Supply Specifications:
- Input Voltage: 100VAC~240VAC
- Input Frequency Range: 50Hz-60Hz
- Output Power: 5 Watts
- Output Voltages: 5V, 10V, 12V, 15V, 18V, 24V
- Rated Current: 1.2A at 5V, 0.75A at 12V, 0.66A at 15V, 0.50A at 18V, 0.254A at 24V
- Ripple and Noise: Max 200mV
- Efficiency: DoE Level VI, Energy Star
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 80°C
- Dimensions: 42x23.7x42mm
- Weight: 55.9g
- Protections: Short Circuit, Over Current
- EMC Compliance: EN55022 Class B, FCC Part 15 Class B
- Isolation: 3000VAC
Buy the Qualtek Series QFWB-5 Power Supply: QFWB512US01
Purchase the Qualtek Series QFWB-5 power supply online today to enjoy dependable 5-watt performance with universal input, multiple output options, and comprehensive protections, all in a compact, energy-efficient design suitable for industrial, automation, and control systems. Its high MTBF and low no-load power consumption make it the perfect choice for reliable operation. Easily integrate it into your projects, reducing downtime and maximizing efficiency. Order now to secure fast delivery and superior quality for your electronic power needs.
Order your Qualtek Series QFWB-5 power supply today and ensure reliable power with high efficiency and compact design for your electronic projects.
Frequently Asked Questions
Where can I buy Qualtek Electronics QFWB512US01?
You can click on the BUY or RFQ button to purchase QFWB512US01 from an authorized Qualtek Electronics distributor.
How do I troubleshoot issues or seek technical support for part QFWB512US01?
You can download the QFWB512US01 datasheet or visit the Qualtek Electronics website for support.
Who is the manufacturer of QFWB512US01?
Qualtek Electronics
