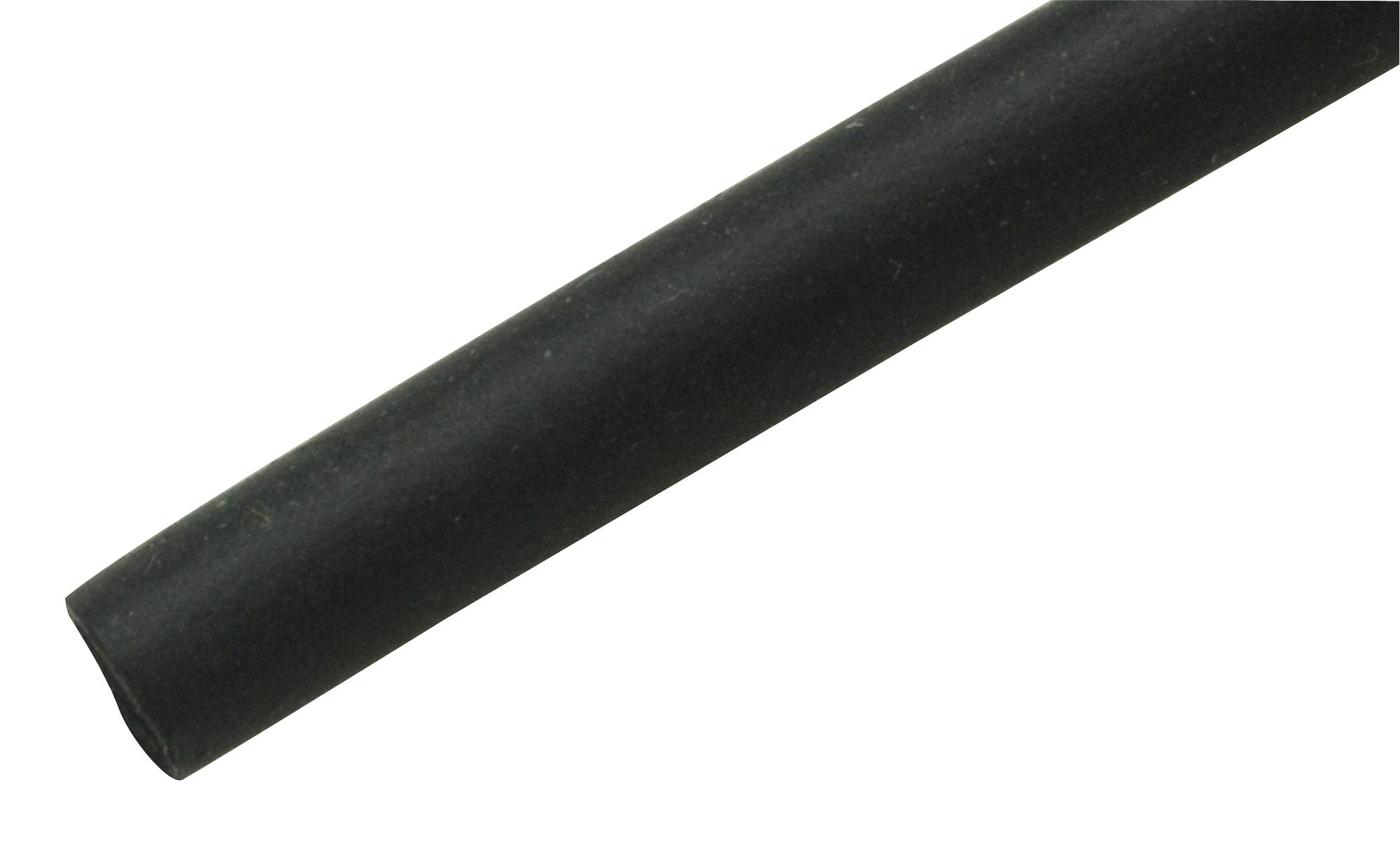

QUALTEK ELECTRONICS Q2F3401SS200FT Heat Shrink Tubing
Heat shrink thin wall tubing offers high flexibility, flame retardancy, and environmental safety. Suitable for electrical insulation, wire termination, and bundling. Operates from -55°C to +135°C, with a shrink ratio of 2:4. Compliant with UL, CSA, RoHS standards, and meets SAE-AMS-DTL-23053/5 specifications. Features include no PBBs, PBBOs, PBBEs, and free of cadmium and lead. Available in standard colors like black, red, blue, yellow, green, white, and clear. This tubing provides excellent resilience and insulation for commercial and military cable applications. It withstands high voltages and environmental stresses while maintaining electrical integrity.
QUALTEK ELECTRONICS Q2F3401SS200FT Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 100°C
- Tensile Strength: >14 MPa
- Ultimate Elongation: > 600%
- Longitudinal Shrinkage: 45%
- Dielectric Strength: >20kV / mm
- Voltage Withstand: AC2500V, 4 min, no breakdown
- Volume Resistance: >10^10 Ω·cm
- Material: Flame-retardant, environment-friendly polymer (no PBBs, PBBOs, PBBEs, cadmium, lead)
- Standards: UL 224, VW-1, SAE-AMS-DTL-23053/5, RoHS compliant
- Colors: Black, red, blue, yellow, green, white, clear
- Dimensions: Wall thickness: 0.40-0.68 mm; Sizes from 12 mm to 159 mm diameter
Buy the Buy Qualtek Heat Shrink Thin Wall Tubing Part Number Q2F3401SS200FT Online
Purchase the high-quality Qualtek heat shrink tubing online today and ensure your electrical installations are protected with flexible, flame-retardant, and environmentally safe insulation. This tubing operates safely from -55°C to +135°C, making it ideal for both commercial and military uses. Its excellent resilience, high dielectric strength, and flame-retardant features guarantee long-lasting insulation and wire bundling. Available in various colors, it conforms to UL, CSA, and RoHS standards. Order now to benefit from fast shipping and trusted quality in your electrical and electronic projects.
Order your Qualtek Series Q2F3401SS200FT heat shrink tubing today and enjoy reliable electrical insulation and environmental protection for your projects.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS Q2F3401SS200FT?
You can click on the BUY or RFQ button to purchase Q2F3401SS200FT from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part Q2F3401SS200FT?
You can download the Q2F3401SS200FT datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of Q2F3401SS200FT?
QUALTEK ELECTRONICS
