RENESAS 49FCT3805DPYGI Clock Driver
The IDT49FCT3805D/E is a high-speed, 3.3V CMOS dual clock driver with two independent output banks, each supporting 1:5 fanout and 3-state control. Designed for precise clock distribution, it offers guaranteed low skew, propagation delay under 2.5ns, and operates at frequencies up to 166MHz. The device features TTL-compatible inputs and outputs, and includes a diagnostic 'heartbeat' monitor for system health. Suitable for industrial environments, it is available in SSOP and QSOP packages, ensuring excellent signal integrity and low power consumption for complex electronic systems.
RENESAS 49FCT3805DPYGI Clock Driver Specifications:
- Operating Voltage: 3.3V + 0.3V
- Frequency Range: up to 166MHz
- Propagation Delay: < 2.5ns (max.)
- Skew: < 200ps (max.)
- Duty Cycle Distortion: < 270ps (max.)
- Output Type: 3-state, independent banks with fanout 1:5
- Inputs: TTL compatible, can be driven from 3.3V or 5V
- Temperature Range: -40°C to +85°C (Industrial)
- Package: SSOP and QSOP
- Monitor Output: Heartbeat for diagnostics
- Power Consumption: Very low CMOS power levels
- Max Frequency: 166 MHz
- Input Capacitance: approximately 3-4 pF
- Output Capacitance: up to 6 pF
- Input Voltage: 0 to 5.5V
- Output Voltage: 0 to 10.5V
- Maximum Junction Temperature: 150°C

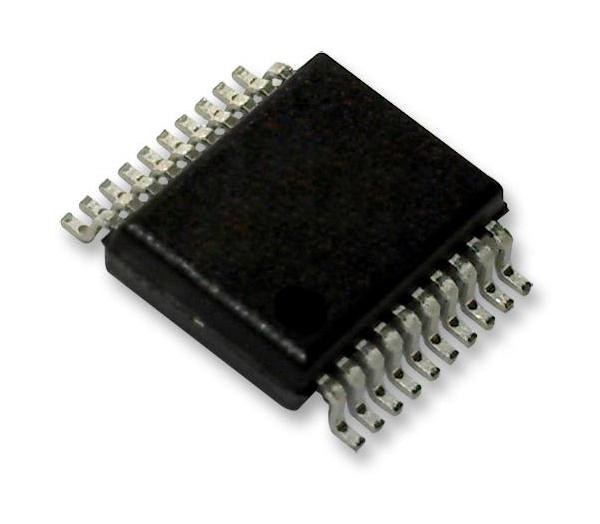

Buy the IDT 49FCT3805D – Reliable Clock Driver for Industrial Applications
Enhance your electronic system with the IDT49FCT3805D high-speed 3.3V CMOS clock driver featuring independent output banks, impressive 166MHz operation, and diagnostic heartbeat monitor. Its low skew and propagation delay ensure signal integrity in critical applications. Designed for industrial environments, it offers TTL compatibility, low power consumption, and robust package options. Easily integrate this reliable and efficient device into your system to achieve precise timing control, low jitter, and stable operation across diverse industrial and computing applications. Buy online now for dependable performance.
Get IDT49FCT3805D today—built for precision, low skew, and high-speed clock distribution in demanding industrial environments.
Frequently Asked Questions
Where can I buy RENESAS 49FCT3805DPYGI?
You can click on the BUY or RFQ button to purchase 49FCT3805DPYGI from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part 49FCT3805DPYGI?
You can download the 49FCT3805DPYGI datasheet or visit the RENESAS website for support.
Who is the manufacturer of 49FCT3805DPYGI?
RENESAS
