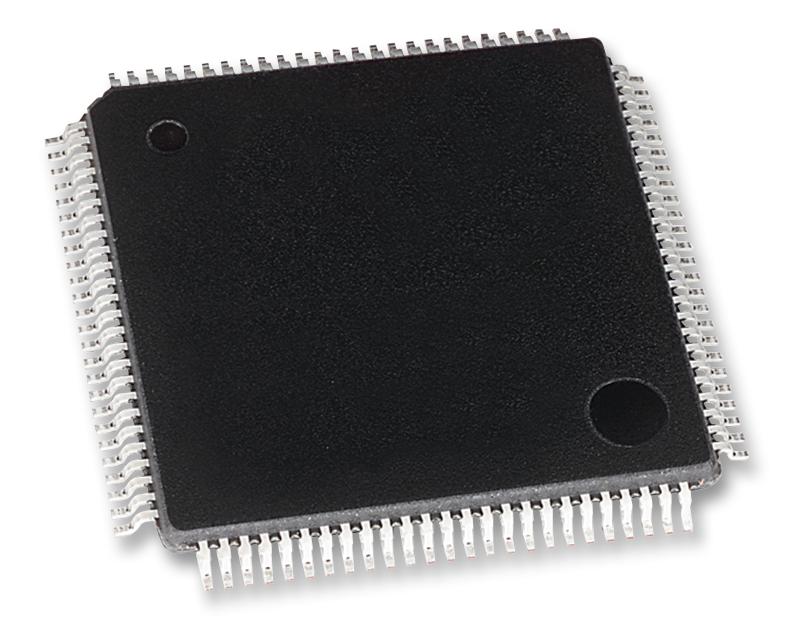

RENESAS 70V24S55PFG Dual-Port Static RAM
The 70V24S55PFG is a high-speed 3.3V dual-port static RAM designed for industrial and commercial applications. It features separate control, address, and I/O pins for independent, asynchronous read and write operations on both ports, with an automatic power-down feature controlled by chip enable signals to reduce power consumption. The device offers fast access times, multiple speed grades, and supports semaphore flags for interprocessor communication. Packaged in a 100-pin TQFP, it operates across a wide temperature range from -40°C to +85°C, with low standby power and high reliability for complex embedded systems.
RENESAS 70V24S55PFG Dual-Port Static RAM Specifications:
- Supply Voltage: 3.3V ±0.3V
- Temperature Range: -40°C to +85°C
- Memory Size: 64K (4K x 16-bit) or 72K (4K x 18-bit) variants available
- Volatile Memory, CMOS technology
- Access Time: 15/20/25 ns depending on speed grade
- Power Consumption: Active: 430mW (max.) or 400mW (typ.), Standby: 3.3mW (typ.)
- Operating Frequency: Up to 66 MHz
- Package: 100-pin TQFP or 84-pin PLCC
- Data Bus Width: 16 or 18 bits, configurable
- Independent control, address, and I/O for each port
- Supports semaphore flags for interprocessor communication
- Bi-directional data I/O with output enable and write controls
- Error-free, full-speed operation without additional logic
- Built with high-performance CMOS technology
Buy the IDT Series Dual-Port RAM: 70V24S55PFG
Secure your high-performance 70V24S55PFG dual-port static RAM today online. Designed for industrial and commercial systems, it offers fast access times, independent ports, and low power consumption. Perfect for high-speed, error-free operation in complex embedded applications with semaphore flags for efficient interprocessor communication. Packaged in a durable 100-pin TQFP, this device ensures reliable data handling over wide operating temperature ranges. Purchase now online to optimize your system’s speed, efficiency, and system stability.
Buy IDT 70V24S55PFG now and experience unmatched reliability and performance in your high-speed embedded memory systems.
Frequently Asked Questions
Where can I buy RENESAS 70V24S55PFG?
You can click on the BUY or RFQ button to purchase 70V24S55PFG from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part 70V24S55PFG?
You can download the 70V24S55PFG datasheet or visit the RENESAS website for support.
Who is the manufacturer of 70V24S55PFG?
RENESAS
