RENESAS 74ALVC162334PAG Universal Bus Driver
This 16-bit universal bus driver with 3-state outputs is built using 0.5 micron CMOS technology, operating at 3.3V with extended Vcc range 2.7V to 3.6V. It features rail-to-rail output swing for noise margin, series resistors to reduce line noise, and balanced drivers capable of 12mA drive. Suitable for SDRAM modules, PC motherboards, and workstations, it ensures high-speed data transfer with low switching noise, fast propagation delays, and robust ESD protection exceeding 2000V. Its compact TSSOP package makes it ideal for space-constrained applications.
RENESAS 74ALVC162334PAG Universal Bus Driver Specifications:
- Operating Voltage Range: 2.7V to 3.6V
- Power Dissipation Capacitance: 31 pF (outputs enabled), 7 pF (outputs disabled)
- Input Voltage HIGH: ≥ 2.3V
- Input Voltage LOW: ≤ 0.8V
- Output Voltage HIGH: Vcc - 0.2V at 0.1mA, 1.7V at 4mA, 2V at 6mA, 2.4V at 12mA
- Output Voltage LOW: 0.2V at 0.1mA, 0.4V at 4mA, 0.55V at 6mA, 0.8V at 12mA
- Propagation Delay: 36 ns (max), with typical values around 45 ns
- Output Skew: 500 ps
- Max DC Output Current: ±50 mA
- ESD Protection: >2000V (MIL-STD-883)
- Package Type: TSSOP, 16-pin SOIC
- Operating Temperature Range: -40°C to +85°C
- Input/Output Capacitance: 5-9 pF
- Series resistors reduce line noise with light loads
- Power Dissipation: 36 pF (outputs enabled), 7 pF (outputs disabled)

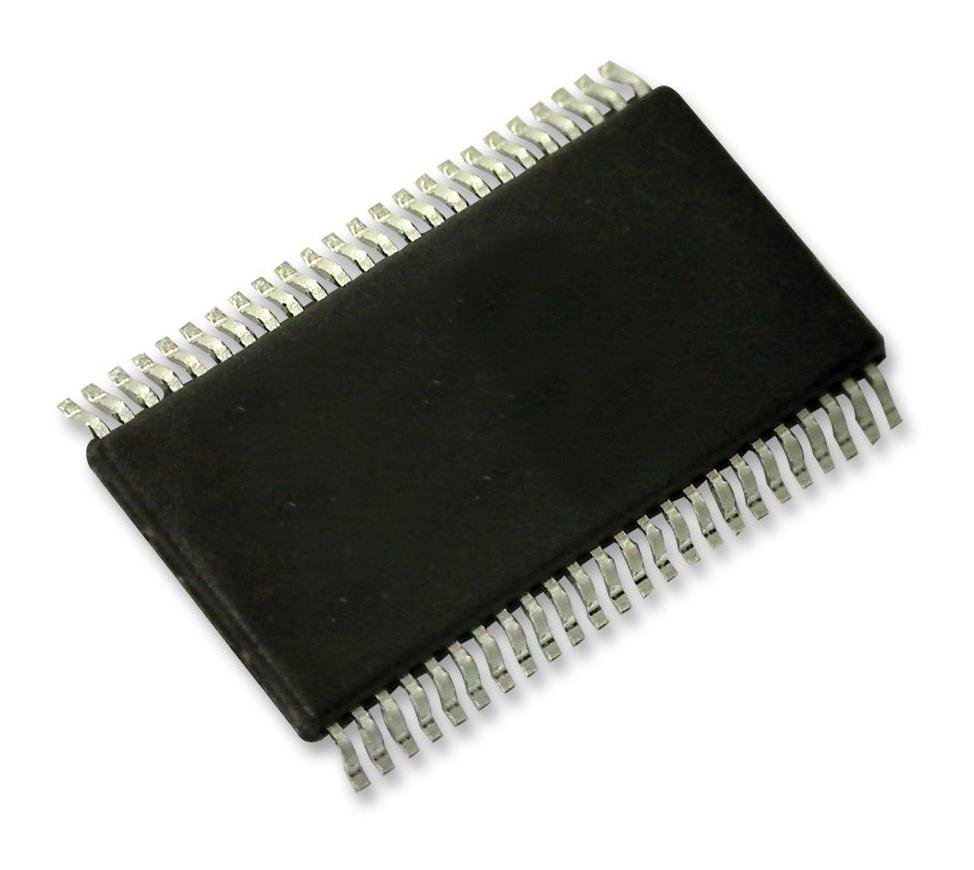

Buy the Buy IDT 74ALVC162334 Part Number 74ALVC162334PAG Online
Purchase the IDT 74ALVC162334 online to enhance your memory modules, PC motherboards, and workstations. Designed with advanced CMOS technology, it offers fast propagation delays, rail-to-rail output swing, and robust ESD protection. Its 16-bit configuration allows efficient data handling with low switching noise and high drive capability of 12mA. Suitable for space-constrained environments, it ensures reliable, high-speed operation across a wide voltage range and temperature spectrum. Buy now for quality, speed, and durability in your electronic designs.
Get IDT 74ALVC162334 today—built for high-speed data transfer, low noise, and reliable performance in industrial applications.
Frequently Asked Questions
Where can I buy RENESAS 74ALVC162334PAG?
You can click on the BUY or RFQ button to purchase 74ALVC162334PAG from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part 74ALVC162334PAG?
You can download the 74ALVC162334PAG datasheet or visit the RENESAS website for support.
Who is the manufacturer of 74ALVC162334PAG?
RENESAS
