RENESAS 71V416L15PHGI High-Speed Static RAM
The Renesas 3.3V CMOS Static RAM model IDT71V416L15PHGI offers high-speed, 4 Meg (256K x 16-Bit) memory with a single 3.3V power supply ideal for cost-effective, high-performance applications in industrial and commercial systems. Constructed using advanced CMOS technology, it features fast access times as quick as 10ns with cycle times up to 15ns, and operates efficiently within industrial temperature ranges. Available in various packages, including BGA, SOJ, and TSOP, it supports LVTTL-compatible bi-directional data I/O, chip deselect power saving, and upper/lower byte enables. Its static, asynchronous circuitry requires no clocks or refresh cycles, ensuring reliable, rapid data access for demanding digital systems.
RENESAS 71V416L15PHGI High-Speed Static RAM Specifications:
- Memory Organization: 256K x 16-Bit
- Supply Voltage: 3.3V
- Access Time: as fast as 10ns
- Cycle Time: up to 15ns
- Package Options: 44-pin SOJ, 44-pin TSOP, 48-ball BGA
- Temperature Ranges: Commercial 0°C to +70°C, Industrial -40°C to +85°C
- Data Input/Output: LVTTL-compatible Bi-directional
- Power Consumption: Low power via chip deselect
- Operating Mode: Static, asynchronous circuitry, no clocks or refresh
- Enable Pins: Chip Select, Output Enable, Byte Enable, Upper and Lower Byte Enable
- Size: 4 Meg (256K x 16-bit)
- Technology: CMOS high-speed, high-reliability
- Additional Features: Reduced noise JEDEC pinout, multiple package types, green parts available

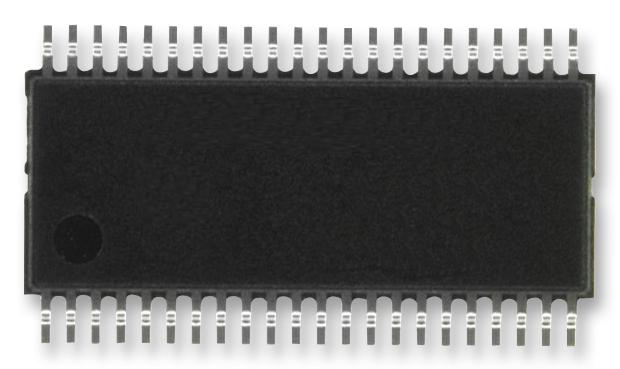

Buy the Renesas Series RAM: High-Speed CMOS Static RAM IDT71V416L15PHGI
Explore the Renesas 71V416L15PHGI static RAM, engineered with advanced CMOS technology to deliver rapid access times up to 10ns and cycle times of 15ns. Its 256K x 16-bit organization provides substantial data capacity, ideal for demanding digital applications. Available in multiple packages, it supports LVTTL-compatible bi-directional data lines, features low power consumption through chip deselect, and operates reliably across industrial and commercial temperature ranges. A cost-effective solution that combines speed, efficiency, and versatility, perfect for embedded systems and high-performance memory needs.
Buy Renesas 71V416L15PHGI now and experience unmatched reliability and performance in high-speed memory solutions for industrial and commercial systems.
Frequently Asked Questions
Where can I buy RENESAS 71V416L15PHGI?
You can click on the BUY or RFQ button to purchase 71V416L15PHGI from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part 71V416L15PHGI?
You can download the 71V416L15PHGI datasheet or visit the RENESAS website for support.
Who is the manufacturer of 71V416L15PHGI?
RENESAS
