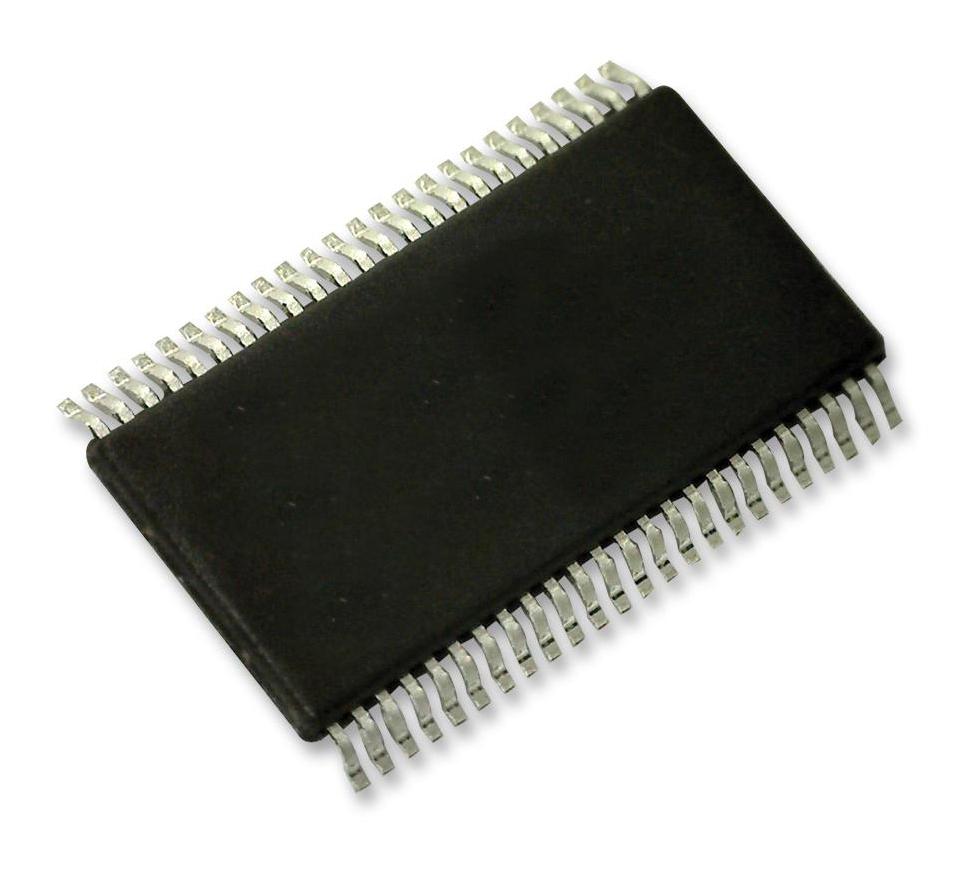

RENESAS 74FCT164245TPAG8 16-Bit Bidirectional Translator
The RENESAS IDT74FCT164245T is a high-speed, low-power 16-bit bidirectional 3.3V to 5V translator built using advanced dual metal CMOS technology. It's ideal for interfacing TTL-compatible 3.3V components with 5V components in mixed voltage environments. The device's control inputs can be driven from either 3.3V or 5V circuits, and its output buffers are designed for driving high-capacitance loads and low-impedance backplanes. The power-off disable capability allows for 'hot insertion' of boards, making it suitable for backplane drivers and interfacing with external 5V peripherals.
RENESAS 74FCT164245TPAG8 16-Bit Bidirectional Translator Specifications:
- Operating Temperature Range: –40°C to +85°C
- Supply Voltage (VCC1): 5V ±10%
- Supply Voltage (VCC2): 2.7V to 3.6V
- Input HIGH Level (VIH): 2 to 5.5V
- Input LOW Level (VIL): –0.5 to 0.8V
- Output HIGH Voltage (VOH): 2.4 to 3V
- Output LOW Voltage (VOL): 0.2 to 0.4V
- ESD Protection: > 2000V per MIL-STD-883, Method 3015
- Package Type: SSOP, TSSOP
- Technology: 0.5 Micron CMOS
- Bidirectional Interface: 3.3V to 5V
- Drive Current: -40 to -90mA
- Leakage Current: ±100μA
- Input Hysteresis: 150mV
Buy the 74FCT164245TPAG8 RENESAS 16-Bit Bidirectional Translator | myMectronic
Purchase the RENESAS 74FCT164245TPAG8 securely and efficiently for your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy RENESAS 74FCT164245TPAG8?
You can click on the BUY or RFQ button to purchase 74FCT164245TPAG8 from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part 74FCT164245TPAG8?
You can download the 74FCT164245TPAG8 datasheet or visit the RENESAS website for support.
Who is the manufacturer of 74FCT164245TPAG8?
RENESAS
