RENESAS 871S1022EKLF PCIe Clock Generator
The IDT ICS871S 1022 is a PLL-based clock generator designed for PCI Express applications. It offers sub-picosecond jitter, low-skew outputs, and edge rates that meet high-speed networking standards. Capable of functioning in jitter attenuator mode to suppress high-frequency noise or as a high-performance clock synthesizer, it generates 100MHz, 125MHz, 250MHz, or 500MHz clocks from a 25MHz crystal or recovered clock. Built with FemtoClock technology, it ensures clean, low-noise clock outputs suitable for PCIe link rates, supporting Spread-Spectrum Clocking and various differential input levels like LVPECL and LVDS.
RENESAS 871S1022EKLF PCIe Clock Generator Specifications:
- Four 0.7V differential output pairs
- One differential clock input pair accepting LVPECL, LVDS, LVHSTL, HCSL
- Crystal oscillator interface for 25MHz crystal
- RMS phase jitter at 100MHz (25MHz crystal): 0.608ps (typical)
- Supports PCIe Gen 1, 2, and 3 jitter standards
- Operating voltage: 3.3V
- Package: 32-Lead VFQFN, 5mm x 5mm x 0.925mm
- Temperature range: 0°C to 70°C
- Power consumption: Core current typical 7mA, Outputs loaded 44.5mW per pair
- Maximum supply voltage: 4.6V
- Junction temperature limit: 125°C
- Pin functions include Vop, CLK, nCLK, XTAL_IN/OUT, and various control inputs/outputs
- Response time: Lock time approximately 100ms
- Power dissipation (worst case): approximately 659.635mW
- Thermal resistance: 39.5°C/W (multi-layer PCB, no forced airflow)

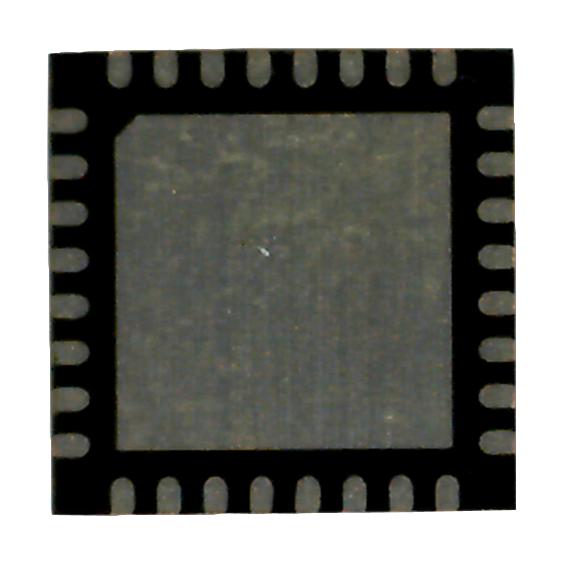

Buy the Buy IDT ICS871S1022 Part Number 871S1022EKLF Online
