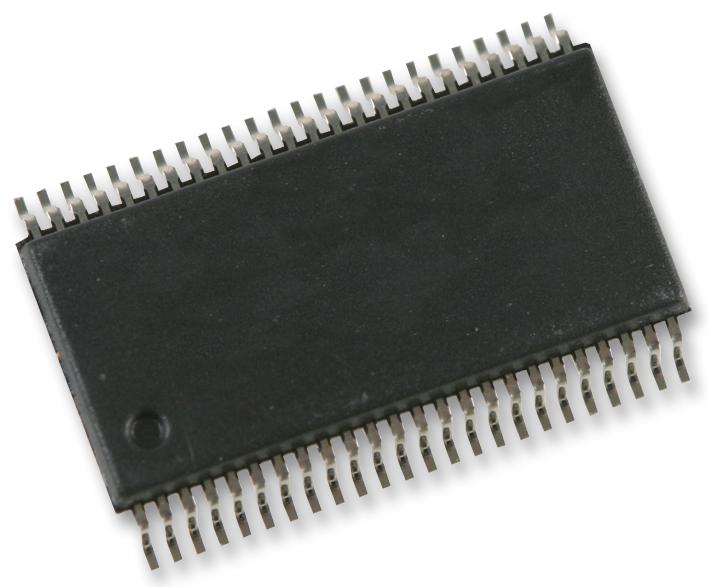

RENESAS 9DB803DFLFT PCIe Clock Buffer
The 9DB803DFLFT is an eight-output differential buffer designed for PCIe Gen1 and Gen2 applications, providing stable clock outputs with low jitter and skew. It supports spread spectrum modulation, jitter tolerance, and various power management modes including power-down and stop modes. Ideal for high-speed digital systems, this RoHS-compliant device offers flexible configurations, PLL and bypass modes, and compatible SMBus interfaces for frequency selection. Its reliable performance enhances signal integrity and timing precision in complex industrial and networking environments.
RENESAS 9DB803DFLFT PCIe Clock Buffer Specifications:
- Supported standards: PCIe Gen1, Gen2
- Outputs: 8 differential pairs, 0.7V current-mode
- Supports spread spectrum modulation: 0 to -0.5% down, +/- 0.25% center spread
- Cycle-cycle jitter: < 50ps, Output skew: < 50ps
- Phase jitter: PCIe Gen1 < 86ps peak-to-peak, PCIe Gen2 < 3.0/3.1ps RMS
- Operating frequency: 50-100MHz in PLL mode, 50-400MHz in Bypass mode
- Power supply: 3.3V typical, with separate ground and reference pins
- Power management: power-down (PD#), stop (DIF_STOP#), and output enable controls
- SMBus interface: for frequency and mode control, 5V tolerant inputs/outputs
- Environmental ratings: -40°C to +85°C, RoHS compliant
Buy the IDT 9DB803DFLFT – Reliable PCIe Clock Buffer for Industrial Applications
Purchase the IDT 9DB803DFLFT online today to upgrade your high-speed digital and networking projects. This reliable eight-output differential buffer offers low jitter, spread spectrum support, power-saving modes, and SMBus control, making it ideal for PCIe Gen1 and Gen2 interfaces. Its robust performance ensures signal integrity and timing precision, helping you achieve optimal system stability in demanding industrial environments. Get yours now for fast delivery and dependable operation.
Order your IDT 9DB803DFLFT today and ensure high-speed PCIe clock stability with low jitter and advanced power management for industrial systems.
Frequently Asked Questions
Where can I buy RENESAS 9DB803DFLFT?
You can click on the BUY or RFQ button to purchase 9DB803DFLFT from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part 9DB803DFLFT?
You can download the 9DB803DFLFT datasheet or visit the RENESAS website for support.
Who is the manufacturer of 9DB803DFLFT?
RENESAS
