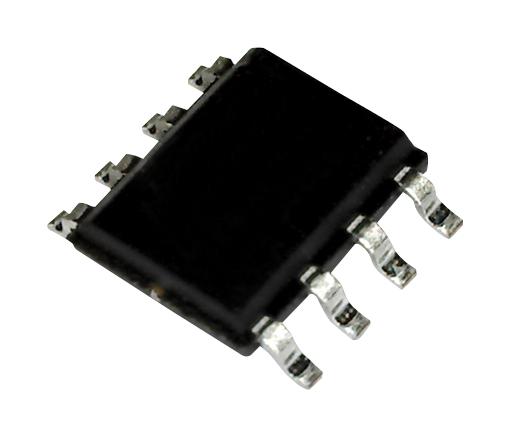

RENESAS AT25SF641SUBT Serial Flash Memory
The AT25SF641 is a 64-Mbit serial flash memory with a 2.7V minimum supply voltage. It supports SPI and Quad modes, with dual I/O, quad I/O, and QPI. Features include high-speed data transfer up to 65MB/s, flexible erase options for code and data, fast page programming, and low power consumption. It operates within -40°C to +85°C industrial temperature range, making it suitable for embedded systems, IoT devices, and data storage applications, with industry-standard packages for versatile implementation.
RENESAS AT25SF641SUBT Serial Flash Memory Specifications:
- Memory Capacity: 64-Mbit (8MB)
- Supply Voltage: 2.7V to 3.6V
- Operating Temperature Range: -40°C to +85°C
- Data Transfer Rate: up to 65MB/s
- Maximum Clock Frequency: 104 MHz
- Page Size: 256 bytes
- Erase Block Sizes: 4KB, 32KB, 64KB, or full chip
- Page Program Time: 0.6 ms typical
- Block Erase Times: 60 ms (4KB), 350 ms (32KB), 700 ms (64KB)
- Endurance: 100,000 cycles
- Data Retention: 20 years
- Low Power Consumption: 2 μA deep power-down, 10 μA standby, 5 mA active read
- Packages: 8-lead SOIC, 8-pad DFN, Die in Wafer Form
- Protection: Hardware and software write protection, security register, lock-down features
Buy the Adesto AT25SF641 – Reliable Serial Flash Memory for Industrial Applications
Enhance your electronic systems with the AT25SF641, a 64-Mbit serial flash memory supporting SPI and QPI interfaces. Featuring up to 65MB/s data transfer, flexible erase options, and low power consumption, it is ideal for industrial, IoT, and data storage applications. Its wide temperature range and industry-standard packages ensure versatile integration and durability. Purchase online today to experience fast, reliable, and efficient memory solutions designed for high-volume, demanding environments.
Order your Adesto AT25SF641 series serial flash memory today and upgrade your embedded or data storage projects with reliable high-speed performance.
Frequently Asked Questions
Where can I buy RENESAS AT25SF641SUBT?
You can click on the BUY or RFQ button to purchase AT25SF641SUBT from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part AT25SF641SUBT?
You can download the AT25SF641SUBT datasheet or visit the RENESAS website for support.
Who is the manufacturer of AT25SF641SUBT?
RENESAS
