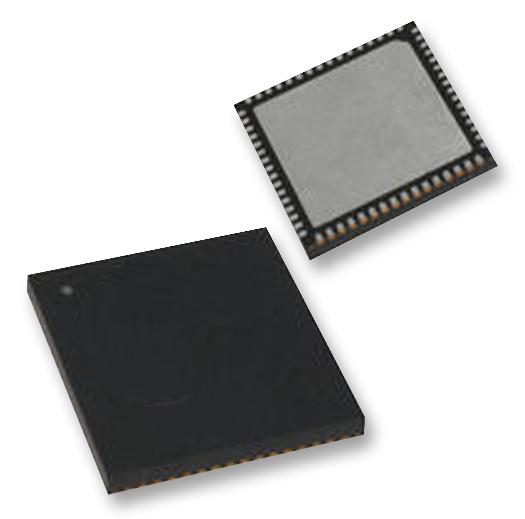

RENESAS 9ZXL1530DKILF High-Speed Differential Buffer
The 9ZXL1530D / 9ZXL1550D are second-generation high-performance differential buffers designed for PCIe Gen1–4 and UPI architectures, providing enhanced phase jitter performance. They feature low-voltage HCSL outputs, SMBus controllability, and support spread spectrum EMI reduction. The devices are pin-compatible upgrades with improved jitter characteristics, low power consumption, and small 9x9 mm package footprint, suitable for server, storage, networking, and SSD applications. They ensure reliable clock signal distribution with fixed delays and configurable bandwidths for critical high-speed data systems.
RENESAS 9ZXL1530DKILF High-Speed Differential Buffer Specifications:
- Package: 9x9 mm 64-VFQFPN
- Pitch: 0.50 mm
- Pins: 64
- Supply Voltage: 3.3V nominal
- Absolute Maximum Vppx: 3.9V
- Junction Temperature: 125°C
- Operating Temperature Range: -40°C to +85°C
- Cycle-to-cycle jitter: < 50 ps
- Output skew: < 50 ps
- Additive phase jitter: PCIe Gen4 < 53 fs rms, UPI < 70 fs rms
- Input/Output Skew: < 50 ps
- Spread spectrum compatible for EMI reduction
- SMBus control with 9 addresses, software/configurable PLL bandwidth
- Differential output: True and complementary clocks, with integrated resistors on 9ZXL1550
- Power consumption: ~54-92 mA at 100 MHz
- Supports Bypass, Low, and High bandwidth modes
- ESD protection: Human Body Model Vt 2000 V
Buy the Buy IDT 9ZXL1530D Part Number 9ZXL1530DKILF Online
Purchase the IDT 9ZXL1530D online today and benefit from advanced differential buffering technology for PCIe Gen1–4 and UPI applications. These devices optimize jitter performance, reduce EMI with spread spectrum support, and provide SMBus controllability for flexible system integration. Their compact 9x9 mm footprint makes them ideal for servers, storage, and networking equipment, ensuring reliable clock distribution and minimal skew. Upgrade your high-speed data systems now for enhanced stability, low power operation, and simplified integration with IDT's proven performance.
Buy IDT 9ZXL1530D now and experience unmatched reliability and performance with low jitter differential buffers for PCIe Gen1–4 and UPI systems.
Frequently Asked Questions
Where can I buy RENESAS 9ZXL1530DKILF?
You can click on the BUY or RFQ button to purchase 9ZXL1530DKILF from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part 9ZXL1530DKILF?
You can download the 9ZXL1530DKILF datasheet or visit the RENESAS website for support.
Who is the manufacturer of 9ZXL1530DKILF?
RENESAS
