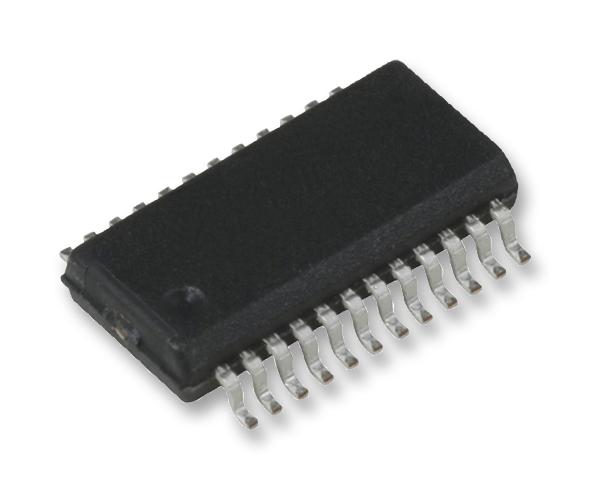

RENESAS QS3383QG Bus Exchange Switch
The QS3383 is a high-speed CMOS 10-bit bus exchange switch designed for applications like hot-swapping, voltage translation, and resource sharing. It offers low ON resistance for minimal propagation delay and ground bounce. Featuring bidirectional 5Q switches, it can swap nibbles or serve as a 2-to-1 multiplexer, supporting byte swapping in systems. The device operates over an industrial temperature range of -40°C to +85°C, is available in QSOP packaging, and is ideal for crossbar switching and high-speed digital signal routing.
RENESAS QS3383QG Bus Exchange Switch Specifications:
- Operation Temperature Range: -40°C to +85°C
- Supply Voltage: 5V ± 5%
- Maximum Power Dissipation: 0.5 W
- Switch ON Resistance: 6-8 Ω at Vcc = 5V, Vin = 0V to 2.4V
- Propagation Delay: 0.25 ns (typical)
- Input High Voltage: 2 V (guaranteed)
- Input Low Voltage: 0.8 V (guaranteed)
- Input Leakage Current: 0.01 pA (max)
- Bus Switch Enable: Active LOW
- Bus Exchange Function: Nibble swap and byte exchange capabilities
- Package Type: QSOP
- Control Pins: BE (Bus Enable), BX (Bus Exchange)
- Power Supply Current: 15 mA (max, static), 0.25 mA/MHz dynamic
- Storage Temperature Range: -65°C to +150°C
Buy the Buy IDT High-Speed CMOS 10-Bit Bus Exchange Switch Part Number QS3383QG Online
Purchase the IDT high-speed CMOS 10-bit bus exchange switch online today to enhance your digital system's speed and efficiency. With low ON resistance, fast propagation delay, and reliable operation over -40°C to +85°C, this device is perfect for byte swapping, resource sharing, and crossbar switching. Its easy-to-use QSOP package makes integration straightforward for industrial applications requiring high-speed data transfer and signal integrity. Get your IC now and improve your system's performance with trusted IDT quality.
Buy IDT QS3383QG now and experience unmatched reliability and performance in high-speed digital signal routing and bus swapping applications.
Frequently Asked Questions
Where can I buy RENESAS QS3383QG?
You can click on the BUY or RFQ button to purchase QS3383QG from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part QS3383QG?
You can download the QS3383QG datasheet or visit the RENESAS website for support.
Who is the manufacturer of QS3383QG?
RENESAS
