RENESAS ISL15102IRZ Differential Line Driver
The ISL15102 is a high-performance, single port differential line driver optimized for Power Line Communication (PLC) applications. It supports high bandwidth, low harmonic distortion, and operates with a supply voltage from 8V to 28V. Designed to drive heavy line loads with exceptional linearity, it features thermal shutdown, internal biasing, and power-down controls for efficient operation. Suitable for broadband and narrowband PLC systems, the device ensures low noise, high slew rate, and robust thermal protection, making it ideal for reliable PLC modem links.
RENESAS ISL15102IRZ Differential Line Driver Specifications:
- Supply Voltage Range: 8V to 28V (max 30V)
- Bandwidth: 90MHz small signal, 60MHz large signal
- Slew Rate: 900V/μs
- Harmonic Distortion: -86dB at 200kHz, -70dB at 3MHz
- Power Dissipation: Refer to circuit conditions; thermal resistance 38°C/W
- Input Bias Current: 3pA (differential mode)
- Output Differential Voltage Swing: 20V p-p (no load)
- Thermal Shutdown at +150°C
- ESD Rating: 2kV Human Body Model
- Operating Temperature Range: -40°C to +85°C
- Package: 24 Ld QFN, dimensions 24.4mm x 5mm
- Pin Configuration: Includes differential inputs, outputs, and power supply pins
- Control Pin: DIS for power-down and enable/disable operation
- Designed for heavy load driving with low distortion and thermal protection

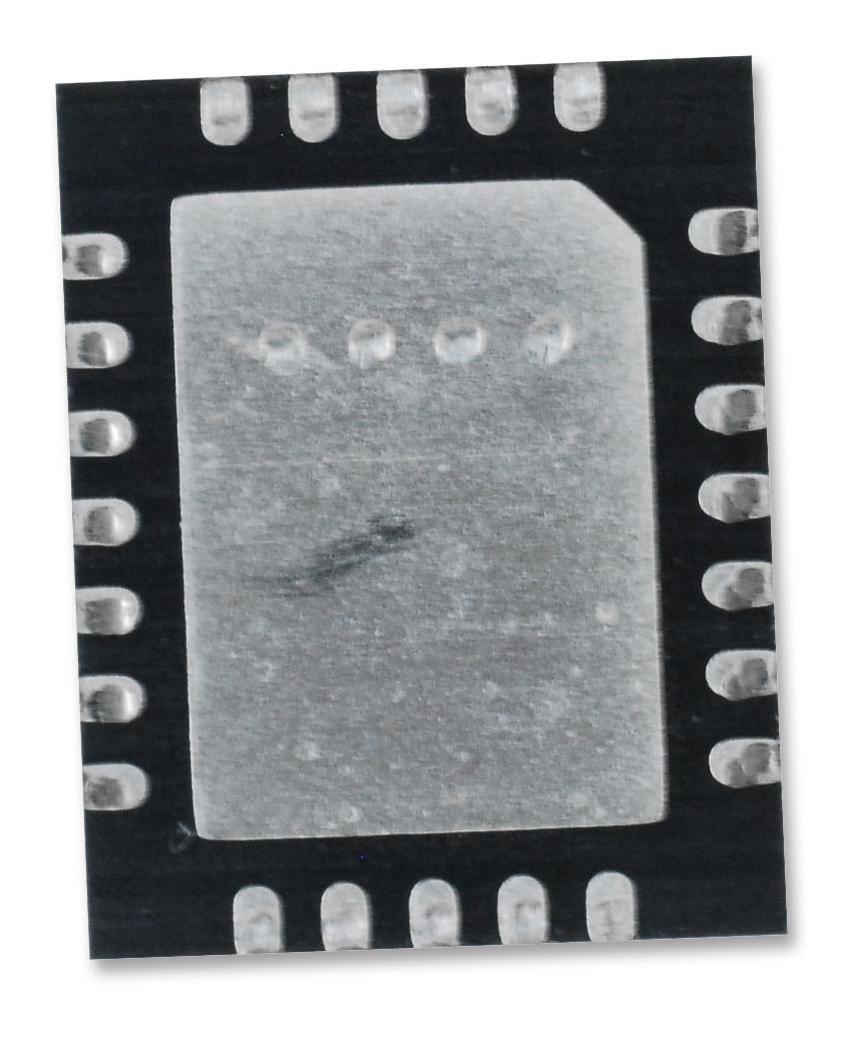

Buy the Intersil Series ISL15102 Differential Line Driver: ISL15102IRZ
Enhance your PLC systems with the Intersil ISL15102IRZ differential line driver. Offering high bandwidth, low harmonic distortion, and thermal protection, this device is ideal for heavy load driving in broadband and narrowband applications. Its compact 24 Ld QFN package, internal biasing, and power-efficient operation make it suitable for industrial automation, power line communication, and high-performance data links. Purchase online today to ensure your communication system is reliable, efficient, and future-proof with this advanced differential driver.
Get Intersil ISL15102IRZ today—built for high bandwidth, low distortion, and reliable PLC differential driver performance.
Frequently Asked Questions
Where can I buy RENESAS ISL15102IRZ?
You can click on the BUY or RFQ button to purchase ISL15102IRZ from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part ISL15102IRZ?
You can download the ISL15102IRZ datasheet or visit the RENESAS website for support.
Who is the manufacturer of ISL15102IRZ?
RENESAS
