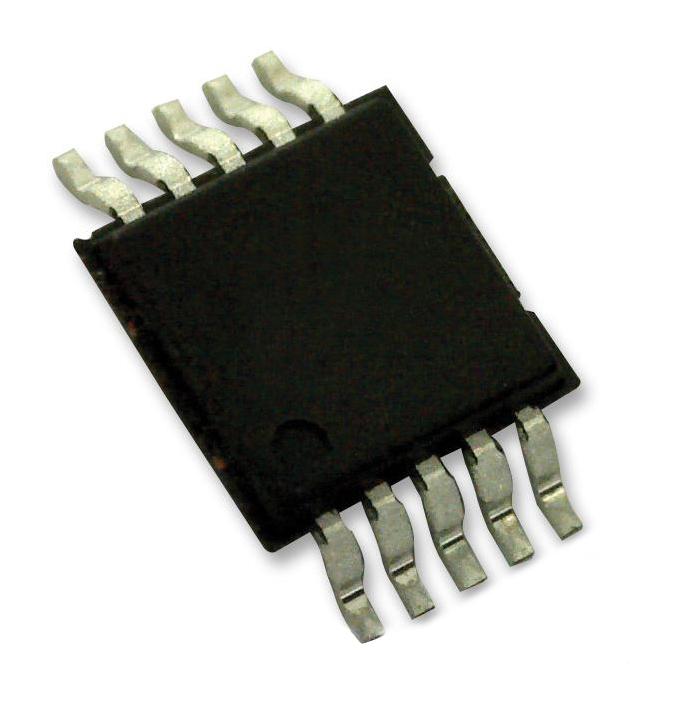

RENESAS ISL23315TFRUZT7A Digital Potentiometer
The ISL23315 is a low voltage, digitally controlled potentiometer with 256 taps, ideal for industrial control, signal processing, and bias compensation applications. It features a CMOS core, serial interface, and volatile wiper registers, providing precise resistance adjustment from 0 to 100kΩ with low power consumption and a wide operating temperature range from -40°C to +125°C. Its compact packages, MSOP and yTQFN, make it suitable for battery-operated and space-constrained systems, enabling reliable parameter tuning and control in diverse industrial and electronic applications.
RENESAS ISL23315TFRUZT7A Digital Potentiometer Specifications:
- Resistance range: 10kΩ, 50kΩ, 100kΩ
- Supply Voltage: 1.7V to 5.5V
- Analog Power Supply: Voc = 1.7V to 5.5V
- Logic Supply Voltage: Viocic = 1.2V to 5.5V
- Wiper Resistance: 70Ω typical @ Veg = 3.3V
- Maximum Wiper Current: 2A
- Operating Temperature Range: -40°C to +125°C
- Packages: 10 Ld uTQFN, 10 Ld MSOP
- Shutdown Current: <2.8μA
- Digital Interface: 12C bus, 400 kHz, open-drain SDA, SCL
- Wiper resolution: 8-bit volatile register, 256 steps
- Power-on Wiper Position: Mid-scale (128)
- Voltage Transients minimized with external capacitors
- RoHS compliant, Pb-free packaging
Buy the Intersil ISL23315TFRUZT7A – Reliable Digital Potentiometer for Industrial Applications
Order the Intersil ISL23315TFRUZT7A online today and enhance your control systems with this low voltage, high precision digitally controlled potentiometer. Its wide resistance options, robust temperature range, and compact package designs make it ideal for signal processing, biasing, and power management in various industrial environments. Enjoy quick delivery, competitive pricing, and the confidence of sourcing from a trusted provider for your electronic design and automation needs.
Buy Intersil ISL23315TFRUZT7A now and experience precise parameter control with low power consumption in your industrial systems.
Frequently Asked Questions
Where can I buy RENESAS ISL23315TFRUZT7A?
You can click on the BUY or RFQ button to purchase ISL23315TFRUZT7A from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part ISL23315TFRUZT7A?
You can download the ISL23315TFRUZT7A datasheet or visit the RENESAS website for support.
Who is the manufacturer of ISL23315TFRUZT7A?
RENESAS
