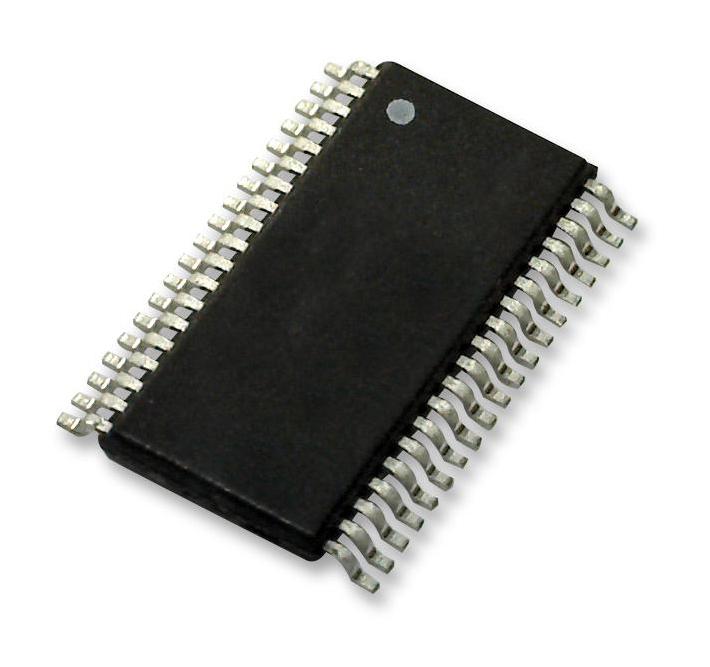

RENESAS ISL81802FVEZT7A Dual Buck Controller
The dual synchronous buck controller manages two independent outputs or one with interleaved phases, suitable for industrial, telecommunication, data center, and computing applications. It features wide input voltage range from 4.5V to 80V, adjustable output from 0.8V to 76V, peak current mode control, phase interleaving, programmable soft-start, and full protection including OVP, UVP, OTP, and current limiting. Packaged in compact 32 Ld TQFN or 38 Ld HTSSOP with thermal EPADs, ensuring high reliability and ease of assembly for high-performance power supplies.
RENESAS ISL81802FVEZT7A Dual Buck Controller Specifications:
- Input Voltage Range: 4.5V to 80V
- Output Voltage Range: 0.8V to 76V
- Peak Current Mode Control
- Phase Interleaving Supports 3, 4, 6 phases with programmable phase shift
- Switching Frequency: 100kHz to 1MHz, adjustable via resistor
- Supports external clock synchronization and frequency dithering
- Thermal Resistance: 29°C/W (32 Ld TQFN), 29°C/W (38 Ld HTSSOP)
- Maximum Junction Temperature: +150°C
- Protection: Over-Voltage (OVP), Under-Voltage (UVP), Over-Temperature (OTP), Peak and Average Current Limit
- Packaging: 32 Ld TQFN (L32.5x5A), 38 Ld HTSSOP (M38.173C)
- Low shutdown current: 5µA
- Power good indicator, output current monitor
- Supports pre-biased power-up and load sharing
- Advanced gate drivers with adaptive dead time, bootstrap circuitry for high-side drives
Buy the Renesas ISL81802 – Reliable Dual Synchronous Buck Controller for Industrial Applications
Get the Renesas ISL81802 dual buck controller now available online. This compact, feature-rich device offers adjustable output voltage, phase interleaving, wide input range, and full protection, making it ideal for sophisticated industrial, telecom, and data center power supplies. With easy-to-assemble packages, integrated protection features, and flexible synchronization options, it ensures high reliability, efficiency, and quick development for your power systems. Purchase today to upgrade your designs with advanced power management capabilities.
Order your Renesas ISL81802 today and enhance your power supply design with a high-efficiency, multi-phase power control solution designed for industrial use.
Frequently Asked Questions
Where can I buy RENESAS ISL81802FVEZT7A?
You can click on the BUY or RFQ button to purchase ISL81802FVEZT7A from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part ISL81802FVEZT7A?
You can download the ISL81802FVEZT7A datasheet or visit the RENESAS website for support.
Who is the manufacturer of ISL81802FVEZT7A?
RENESAS
