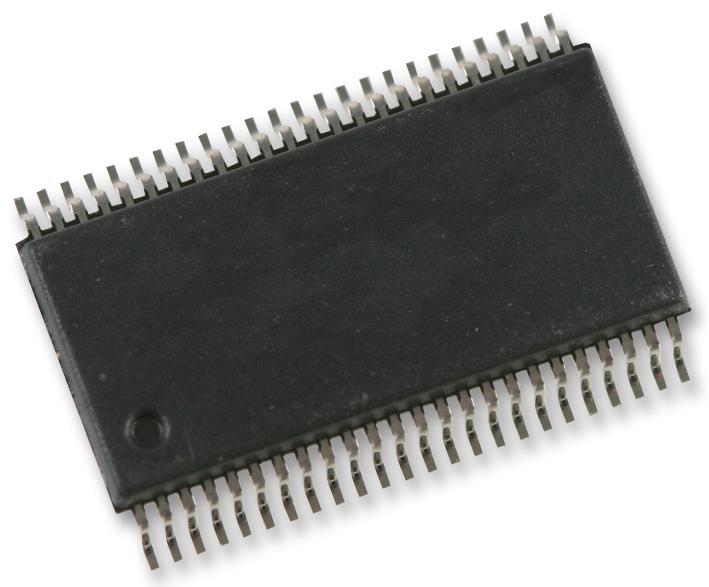

RENESAS R1LV1616HSA4SIB1 Static RAM
The R1LV1616HSA-I Series is a high-density 16-Mbit static RAM featuring low power consumption and embedded ECC for error correction. It operates over a wide temperature range from -40°C to +85°C and is packaged in a 48-pin TSOPI surface-mount package, making it ideal for battery-backed systems and high-performance applications requiring reliability. With fast access times of 45/55 ns, it offers static, seamless operation without clock or strobe signals, suitable for mission-critical embedded systems where data integrity and low energy use are essential.
RENESAS R1LV1616HSA4SIB1 Static RAM Specifications:
- Memory organization: 1-Mword x 16-bit / 2-Mword x 8-bit
- Supply Voltage: 2.7 V to 3.6 V
- Operating Temperature: -40°C to +85°C
- Access Time: 45/55 ns (max)
- Standby Power Dissipation: 1.5 pW (typ)
- Active Power Dissipation: 9 mW/MHz (typ)
- Package: 48-pin TSOPI
- Embedded ECC for 1-bit error correction
- Low power standby mode suitable for battery backup
- Inputs/Outputs: Common data input/output, three-state output
- Width Temperature Range: –40°C to +85°C
- Package option: R1LV1616HSA-4S1 (45 ns), R1LV1616HSA-5SI (55 ns)
Buy the Renesas R1LV1616HSA – Reliable Static RAM for Industrial Applications
Order the Renesas R1LV1616HSA static RAM online today and benefit from industry-leading high-density memory, embedded ECC, wide temperature operation, and low power consumption. Perfect for battery-backed and industrial applications, this 48-pin TSOPI package offers fast access times of 45 or 55 ns, static seamless operation, and reliable data integrity features. Enhance your embedded system's performance and reliability by purchasing now with confidence and secure long-term stability for your mission-critical projects.
Buy Renesas R1LV1616HSA-4S1 now and experience unmatched reliability and performance in low power static RAM designed for demanding industrial systems.
Frequently Asked Questions
Where can I buy RENESAS R1LV1616HSA4SIB1?
You can click on the BUY or RFQ button to purchase R1LV1616HSA4SIB1 from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part R1LV1616HSA4SIB1?
You can download the R1LV1616HSA4SIB1 datasheet or visit the RENESAS website for support.
Who is the manufacturer of R1LV1616HSA4SIB1?
RENESAS
