RENESAS R5F523W8ADNG30 High-performance Microcontroller
The high-performance microcontroller features a 54 MHz 32-bit RXv2 CPU core with built-in FPU supporting IEEE754, enhanced DSP functions, and a wide range of communication peripherals including Bluetooth 5.0, USB 2.0, CAN, SD host interface, and serial sound interface. It has extensive memory options with up to 512 KB flash, 64 KB SRAM, and 8 KB DataFlash, along with versatile clock and power management features, touch sensing, encryption, and security functions suitable for industrial and consumer applications. Its low power architecture supports multiple low power modes, making it ideal for embedded systems requiring high computational capacity and connectivity.
RENESAS R5F523W8ADNG30 High-performance Microcontroller Specifications:
- Maximum CPU frequency: 54 MHz
- 128-bit AES encryption, hardware security functions
- Up to 512 KB on-chip Flash memory
- Up to 64 KB SRAM
- 8 KB DataFlash with 1,000,000 program/erase cycles
- Built-in FPU conforming to IEEE754
- Enhanced DSP: 32-bit multiply-accumulate, 16-bit instructions
- Bluetooth 5.0 Low Energy, RF transceiver supporting 1 Mbps, 2 Mbps, 500 kbps, 125 kbps
- USB 2.0 full-speed (12 Mbps), OTG, and Battery Charger support
- CAN compliant with ISO11898-1 (up to 1 Mbps)
- SD host interface, Serial Sound Interface, I2C, SPI, IrDA, and UART
- 12-bit A/D converter (14 channels), 12-bit D/A (2 channels), touch sensing, temperature sensor
- Deep sleep, software standby, and multiple low power modes
- Multiple clock sources: main, sub-clock, HOCO, LOCO, Bluetooth dedicated clock, USB PLL
- Security: Hardware encryption, true random number generator
- Package options: PTBGO85 (85-pin BGA), PVQNOOS6LA-A (56-pin QFN)

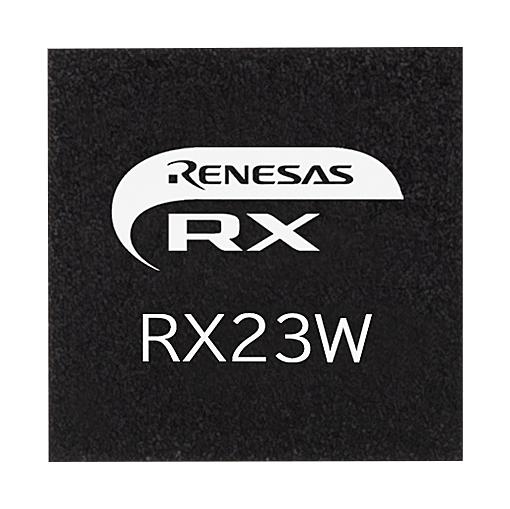

Buy the Renesas R5F523W8ADNG30 – Reliable Industrial MCU for Connectivity and Security
Discover the advanced Renesas high-performance microcontroller R5F523W8ADNG30, featuring a 54 MHz 32-bit CPU, extensive memory, Bluetooth 5.0, USB 2.0, CAN, and secure encryption. Perfect for industrial automation, consumer electronics, and IoT applications. Its low power architecture, touch sensing, and wide communication options enable reliable, connected systems for demanding environments. Order online now and enhance your project with dependable, high-capacity performance and integrated security features.
Order your Renesas R5F523W8ADNG30 high-performance MCU today and give your industrial and embedded projects the dependable connectivity and security they deserve.
Frequently Asked Questions
Where can I buy RENESAS R5F523W8ADNG30?
You can click on the BUY or RFQ button to purchase R5F523W8ADNG30 from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part R5F523W8ADNG30?
You can download the R5F523W8ADNG30 datasheet or visit the RENESAS website for support.
Who is the manufacturer of R5F523W8ADNG30?
RENESAS
