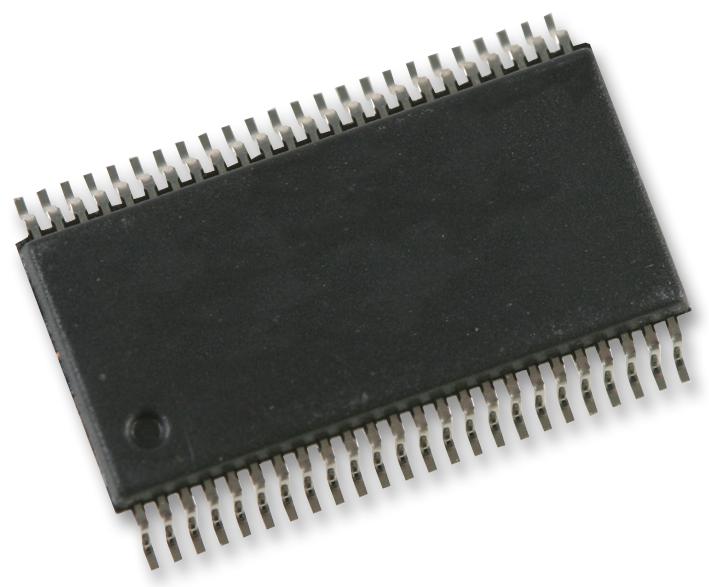

RENESAS 74FCT16244ATPVG Buffer Line Driver
The 16-bit Buffer and Line Driver is designed for bus interface or signal buffering applications, utilizing high-speed CMOS technology for low power consumption. It features efficient 0.5 micron CMOS process, hysteresis for noise margin, high drive outputs, and supports independent 4-bit, 8-bit, or 16-bit operations with three-state controls. Its compact packages make it ideal for high-capacitance loads, backplanes, and live insertion scenarios. Suitable for industrial and military environments, it ensures reliable performance in demanding conditions with robust ESD protection.
RENESAS 74FCT16244ATPVG Buffer Line Driver Specifications:
- Process: 0.5 MICRON CMOS Technology
- Maximum Terminal Voltage: -0.5 to +7 V
- Maximum Storage Temperature: -65 to +150°C
- DC Output Current: 60 to 120 mA
- Input Capacitance: 35 pF (Typ.), 6 pF (Max.)
- Output Capacitance: 35 pF (Typ.), 8 pF (Max.)
- Power Supply Voltage: 4.5 to 5.5V
- Input HIGH Level: Guaranteed at Vcc = 3.4V (Min.)
- Output Drive Current: -32 mA (Output), 64 mA (Input/Output)
- Output HIGH Voltage: 2.35 to 3.5V at Vcc = 5V
- Propagation Delay: 15 to 48 ns (CL=50pF)
- Temperature Range (Industrial): -40°C to +85°C
- Temperature Range (Military): -55°C to +125°C
- ESD Protection: >2000V (MIL-STD-883, Method 3015)
Buy the IDT 74FCT16244AT – Reliable Buffer for Industrial Applications
Order the IDT 74FCT16244AT online today to benefit from a high-speed, low-power 16-bit buffer and line driver. Its robust design supports industrial and military applications, offering excellent noise margin, high drive capabilities, and versatile operation. Fast response times and wide temperature range ensure reliable performance across diverse conditions. Perfect for driving high capacitance loads, backplanes, or enabling live insertion. Purchase now to integrate this dependable component into your manufacturing or system designs for optimal signal integrity and long-lasting durability.
Get IDT 74FCT16244AT today—engineered for high-speed data handling and durable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy RENESAS 74FCT16244ATPVG?
You can click on the BUY or RFQ button to purchase 74FCT16244ATPVG from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part 74FCT16244ATPVG?
You can download the 74FCT16244ATPVG datasheet or visit the RENESAS website for support.
Who is the manufacturer of 74FCT16244ATPVG?
RENESAS
