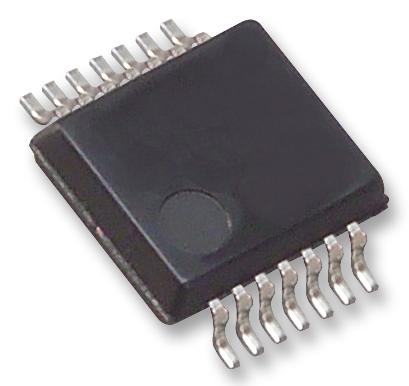

RENESAS ZSC31150GEG1T Sensor Signal Conditioner
The ZSC31150 is a highly accurate CMOS sensor signal conditioner designed for bridge sensor amplification and correction. It features digital compensation for offset, sensitivity, temperature drift, and non-linearity via an internal 16-bit RISC microcontroller with calibration stored in EEPROM. Adjustable for nearly all bridge sensor types, it offers analog voltage output or digital ZACwire interface. Its benefits include no external trimming components, PC-controlled calibration, high accuracy, EMC robustness, and an extended temperature range up to +150°C, making it ideal for automotive and industrial sensor applications.
RENESAS ZSC31150GEG1T Sensor Signal Conditioner Specifications:
- Supply voltage: 4.5V to 5.5V
- Operation temperature: -40°C to 125°C (extended to +150°C for some versions)
- Analog gain: up to 420
- Sampling rate: up to 7.8kHz
- Resolution: 12 to 16 bits (ADC)
- Digital interface: ZACwire™
- Analog voltage output: 5% to 95% of maximum (12.4-bit resolution)
- High voltage protection: up to 33V
- Supply current: max. 5.6mA
- Reverse polarity and short-circuit protection
- Programmable gain amplifier with adjustable gain and offset compensation
- Calibration via PC or ZACwire interface
- Package options include 14-DFN (5x4 mm), SSOP 14, and die
- Traceability through user-defined EEPROM entries
Buy the Buy IDT ZSC31150 GEG1T Sensor Signal Conditioner Part Number ZSC31150GEG1T Online
Experience reliable and precise sensor signal conditioning with the IDT ZSC31150 GEG1T. Its advanced digital compensation, adjustable gain, and high temperature tolerance make it ideal for industrial and automotive sensor projects. Easily calibrate through PC or ZACwire interface, eliminate external trimming components, and enjoy robust EMC and ESD protection. With a compact package and extensive temperature range, this signal conditioner ensures consistent accurate measurements in demanding environments. Purchase online today for fast delivery and dependable performance.
Order your IDT ZSC31150 GEG1T sensor signal conditioner today and enhance your sensor calibration with precise digital compensation and automotive-grade reliability.
Frequently Asked Questions
Where can I buy RENESAS ZSC31150GEG1T?
You can click on the BUY or RFQ button to purchase ZSC31150GEG1T from an authorized RENESAS distributor.
How do I troubleshoot issues or seek technical support for part ZSC31150GEG1T?
You can download the ZSC31150GEG1T datasheet or visit the RENESAS website for support.
Who is the manufacturer of ZSC31150GEG1T?
RENESAS
