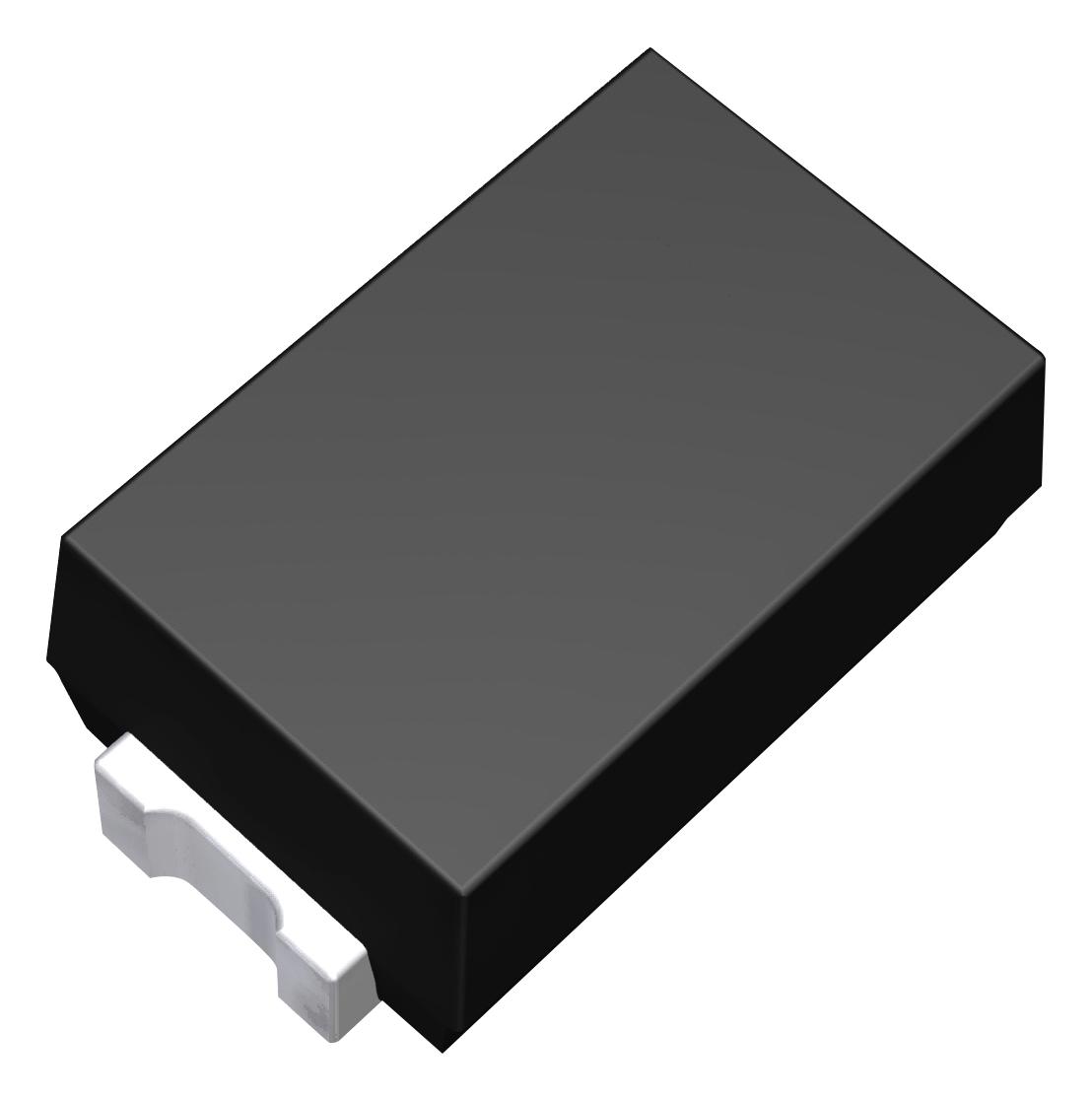

ROHM 1SS400CSFHT2RA High-Speed Switching Diode
The 1SS400CSFH is a high-speed switching diode designed for fast recovery applications in electronic circuits. It features an ultra-small mold type construction, ensuring reliable performance and space efficiency. The diode is built with silicon epitaxial planer structure, providing high durability and low forward voltage drop, typically around 1.2 V at 100 mA. It supports repetitive peak reverse voltage up to 90 V, DC reverse voltage of 80 V, and surge current of 500 mA, making it ideal for high-speed switching and rectification tasks.
ROHM 1SS400CSFHT2RA High-Speed Switching Diode Specifications:
- Reverse voltage (repetitive peak): 90 V
- Reverse voltage (DC): 80 V
- Forward current (repetitive peak): 225 mA
- Average rectified forward current: 100 mA
- Surge current: 500 mA
- Junction temperature: 150 °C
- Storage temperature: -55 to +150 °C
- Forward voltage: 1.2 V at 100 mA
- Reverse current: 100 nA at 80 V
- Capacitance between terminal: 3.0 pF
- Reverse recovery time: 4.0 ns
- Electrostatic discharge (ESD): Sensitive to static
- Peak surge forward current: 90 A
- Thermal resistance Rθja: Typically specified
- Dimensions conform to standard SMD package
Buy the Buy ROHM High-Speed Switching Diode Part Number 1SS400CSFH Online
Enhance your electronic projects with the reliable 1SS400CSFH high-speed switching diode from ROHM. This compact SMD component offers low forward voltage, high surge capacity, and fast recovery time, ideal for high-speed rectification and switching applications. With its robust construction and proven reliability, it ensures optimal circuit performance in various environments. Purchase online today to ensure quick delivery and integrate this essential component into your circuit designs for superior efficiency and durability.
Buy ROHM 1SS400CSFH high-speed switching diode now and experience unmatched reliability and performance in your electronic circuits.
Frequently Asked Questions
Where can I buy ROHM 1SS400CSFHT2RA?
You can click on the BUY or RFQ button to purchase 1SS400CSFHT2RA from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part 1SS400CSFHT2RA?
You can download the 1SS400CSFHT2RA datasheet or visit the ROHM website for support.
Who is the manufacturer of 1SS400CSFHT2RA?
ROHM
