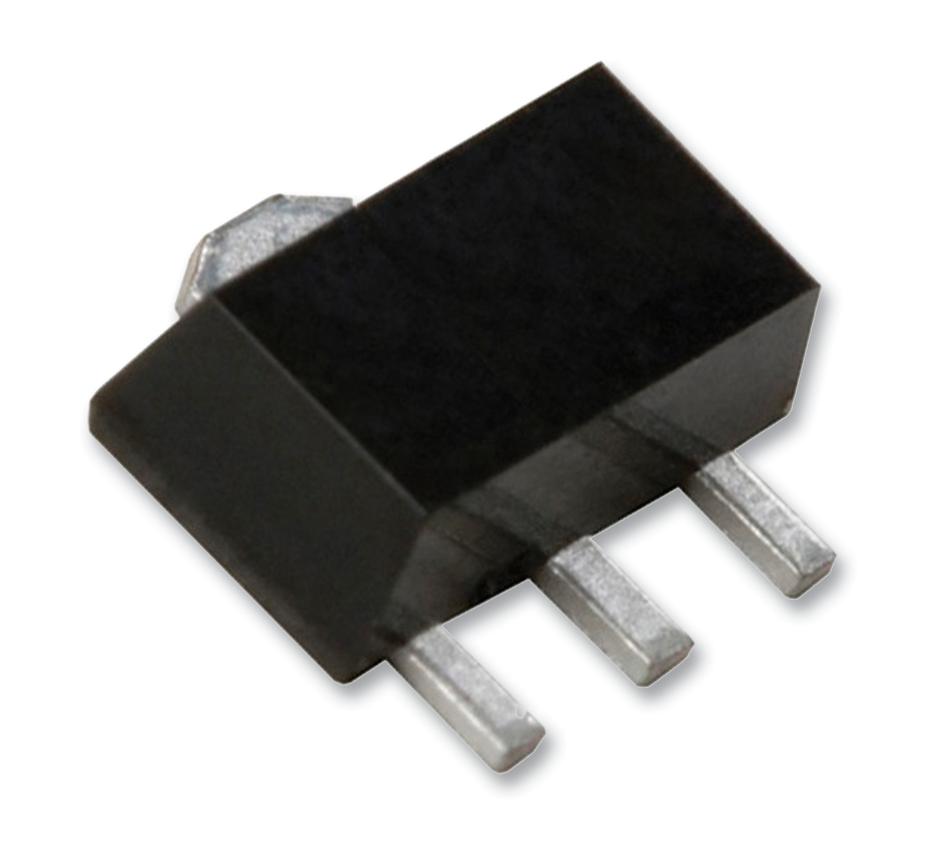

ROHM 2SAR293PHZGT100 Power Transistor
The 2SAR293P HZG is a low-voltage power transistor designed for low-frequency amplifier and driver applications. With a SOT-89 package, it features a collector-base voltage and collector-emitter voltage of -30V, emitter-base voltage of 6V, and a maximum collector current of -1A. Its low saturation voltage and high transition frequency of 320MHz make it suitable for high-speed switching. Qualified to AEC-Q101 standards, it offers reliable performance in automotive and industrial environments, with a power dissipation of 2W and a junction temperature up to 150°C.
ROHM 2SAR293PHZGT100 Power Transistor Specifications:
- Package: SOT-89
- Package Size Code: PTS
- Taping: T100
- Tape Width: 12 mm
- Quantity: 1000 units
- Collector-Base Voltage: -30 V
- Collector-Emitter Voltage: -30 V
- Emitter-Base Voltage: 6 V
- Collector Current: -1 A
- Maximum Power Dissipation: 2 W
- Junction Temperature: 150°C
- Storage Temperature Range: -55°C to +150°C
- Transition Frequency: 320 MHz
- Collector Cut-off Current: <100 nA
- Gain Bandwidth Product: 320 MHz
- Collector Saturation Voltage: -350 mV (max)
- Collector-Base Breakdown Voltage: -30 V
- Emitter-Base Breakdown Voltage: 6 V
- Rise/Fall Time: 60 ns / 50 ns
- Output Capacitance: Data not specified in details
Buy the ROHM Series MPT3 Low Voltage Power Transistor: 2SAR293P
Purchase the ROHM Series MPT3 2SAR293P power transistor online today and enhance your electronic designs with its reliable performance. Designed for low-frequency amplifier and driver circuits, this component features a -30V voltage rating, -1A max current, and a high transition frequency of 320MHz, making it perfect for high-speed switching applications. Its compact SOT-89 package allows easy integration into various modules. With robust specifications including 2W power dissipation and a junction temperature of 150°C, this transistor ensures durable, efficient operation for automotive, industrial, and electronic projects.
Order your ROHM Series MPT3 2SAR293P power transistor today and give your projects the dependable high-speed switching performance they deserve.
Frequently Asked Questions
Where can I buy ROHM 2SAR293PHZGT100?
You can click on the BUY or RFQ button to purchase 2SAR293PHZGT100 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part 2SAR293PHZGT100?
You can download the 2SAR293PHZGT100 datasheet or visit the ROHM website for support.
Who is the manufacturer of 2SAR293PHZGT100?
ROHM
