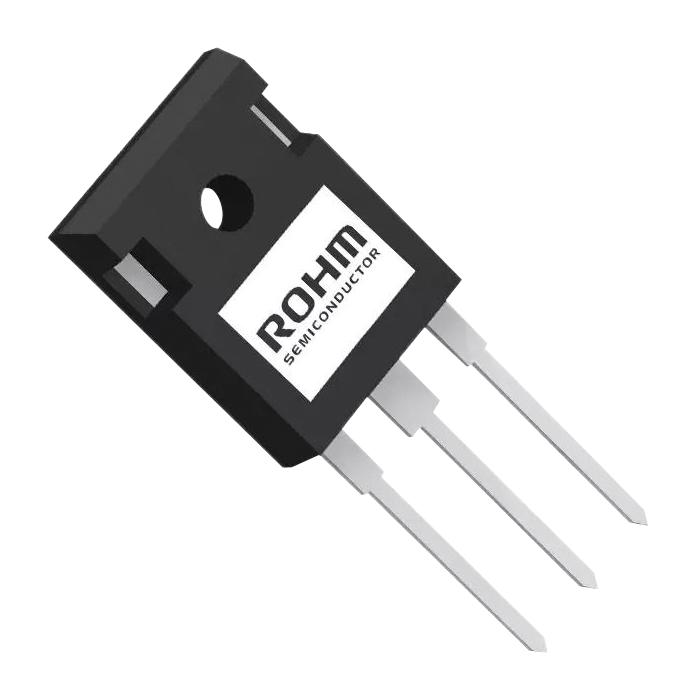

ROHM RGCL80TS60GC11 Power IGBT Module
The RGCL80TS60 is a 600V, 40A field stop trench IGBT module designed for reliable industrial applications. It features low collector-emitter saturation voltage of approximately 1.4V at 25°C, soft switching capabilities, and is RoHS compliant. Suitable for inverter, PFC, and discharge circuits, this module offers high power dissipation of 74W at 100°C and efficient thermal management with a junction-to-case thermal resistance of 1.01°C/W. It includes a tape packaging for automated assembly and is optimized for high-current switching with a pulsed collector current of 160A. Its operating junction temperature ranges from -40°C to +175°C.
ROHM RGCL80TS60GC11 Power IGBT Module Specifications:
- Collector - Emitter Voltage: 600 V
- Gate - Emitter Voltage: +30 V
- Collector Current: 40 A (at 100°C), 10 A (at 25°C)
- Pulsed Collector Current: 160 A
- Power Dissipation: 74 W at 100°C
- Operating Junction Temperature: -40°C to +175°C
- Storage Temperature: -55°C to +175°C
- Thermal Resistance (Junction to Case): 1.01°C/W
- Leakage Current: <10 pA at 600 V
- Gate Threshold Voltage: 4.5 to 6.5 V
- Saturation Voltage: 1.4V at 25°C
- Package: Tube, Tape Reel
- RoHS Compliant, Pb-Free Lead Plating
Buy the ROHM RGCL80TS60 – Reliable Power IGBT for Industrial Applications
Discover the ROHM RGCL80TS60 power IGBT module, engineered for high-current industrial inverter and power conversion circuits. With a voltage rating of 600V and 40A continuous current, it provides efficient switching, low saturation voltage, and RoHS compliance. Its thermal design ensures reliable operation at high junction temperatures up to 175°C, making it ideal for demanding applications. Convenient tape packaging enables easy integration into automated assembly lines. Ensure optimal performance and durability by choosing this high-quality module for your power electronics projects.
Buy ROHM RGCL80TS60 now and experience unmatched reliability and high-current switching performance in your industrial inverter and power systems.
Frequently Asked Questions
Where can I buy ROHM RGCL80TS60GC11?
You can click on the BUY or RFQ button to purchase RGCL80TS60GC11 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RGCL80TS60GC11?
You can download the RGCL80TS60GC11 datasheet or visit the ROHM website for support.
Who is the manufacturer of RGCL80TS60GC11?
ROHM
