ROHM 2SAR514PHZGT100 Middle Power Transistor
The 2SAR514P HZG is a high-speed switching NPN middle power transistor suitable for low frequency amplifiers and switching applications. Featuring low saturation voltage, high transition frequency, and qualified under AEC-Q101 standards, it offers reliable performance in robust environments. Constructed with a SOT-89 package, it supports collector-base and collector-emitter voltages up to -80V, with a maximum collector current of -0.7A and power dissipation of 0.5W. Its electrical characteristics include a collector-emitter saturation voltage of approximately -200mV at 300mA, ensuring efficient operation in demanding electronic circuits.
ROHM 2SAR514PHZGT100 Middle Power Transistor Specifications:
- Package: SOT-89
- Collector-Base Voltage: -80 V
- Collector-Emitter Voltage: -80 V
- Emitter-Base Voltage: 6 V
- Collector Current: -0.7 A
- Power Dissipation: 0.5 W
- Power Dissipation (max): 0.5 W
- Junction Temperature: 150°C
- Storage Temperature Range: -55°C to +150°C
- Transition Frequency: 380 MHz
- Collector-Emitter Saturation Voltage: -200 mV at 300 mA
- DC Current Gain (hFE): 120 to 390
- Output Capacitance: 10 pF
- Collector Cut-Off Current: 1.0 pA
- Emitter Cut-Off Current: 1.0 pA

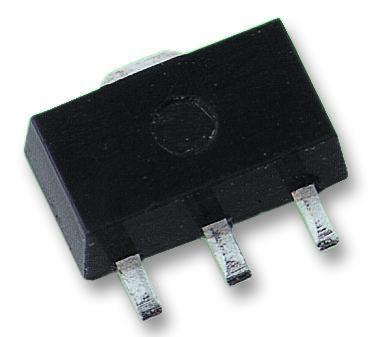

Buy the Buy ROHM 2SAR514P HZG Part Number 2SAR514PHZGT100 Online
Purchase the high-performance 2SAR514P HZG transistor online today and enhance your design with its low saturation voltage and high-speed switching capabilities. This essential component supports up to -80V collector-base and collector-emitter voltages, with a maximum current of -0.7A, making it suitable for amplifiers and switching applications. Its robust SOT-89 package ensures reliable mounting, while its AEC-Q101 qualification guarantees durability under demanding conditions. Order now to benefit from fast delivery and trusted quality, ideal for professional electronics and industrial projects.
Buy ROHM 2SAR514P HZG now and experience unmatched reliability and high-speed switching performance in your electronic circuits.
Frequently Asked Questions
Where can I buy ROHM 2SAR514PHZGT100?
You can click on the BUY or RFQ button to purchase 2SAR514PHZGT100 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part 2SAR514PHZGT100?
You can download the 2SAR514PHZGT100 datasheet or visit the ROHM website for support.
Who is the manufacturer of 2SAR514PHZGT100?
ROHM
