ROHM BD5424EFSE2 Stereo Power Amplifier
BD5424EFS is a 20W + 20W stereo class-D power amplifier IC optimized for space-saving, low heat generation applications such as slim TVs. Employing advanced BCD process technology, it achieves high efficiency of 91%, reducing power dissipation and heat. Its compact HTSSOP-A44 package eliminates the need for external radiators, enabling powerful audio output within a small form factor. Features include protection circuits against thermal overload, short circuits, and DC faults, along with a soft-switching mute function for minimal pop noise during power transitions, ensuring high-quality sound performance.
ROHM BD5424EFSE2 Stereo Power Amplifier Specifications:
- Output Power: 20W + 20W (17V, 8Ω load), 10W + 10W (8Ω load)
- Efficiency: 91% (at 10W + 10W with 8Ω load)
- Supply Voltage: +10V to +18V (VCC), +20V max
- Total Harmonic Distortion: 0.1% (at 1W, BW=20Hz-20kHz)
- Operating Temperature Range: -40°C to +85°C
- Maximum Junction Temperature: 150°C
- Package: HTSSOP-A44 (5mm x 7.5mm, pitch 0.8mm)
- Protection Circuits: Thermal shutdown, VCC/GND short protection, DC fault, speaker DC voltage protection
- Control: Master/slave synchronization, muting, output limiter
- Internal PWM sampling clock frequency: 350kHz to 500kHz

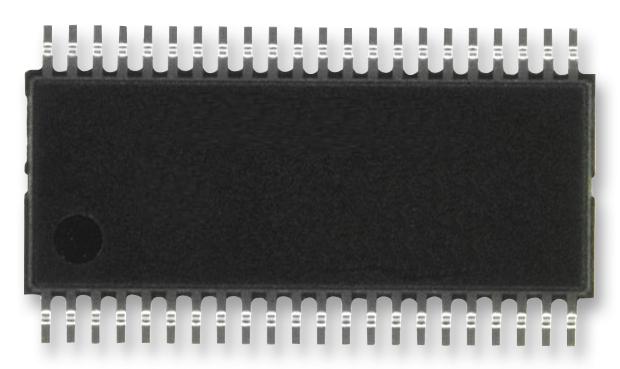

Buy the Buy ROHM BD5424EFS Part Number 10075EBT04 Online
Order the ROHM BD5424EFS stereo class-D amplifier IC online to enjoy high-quality 20W + 20W audio output with 91% efficiency. Perfect for compact TVs and slim audio devices, this IC combines low heat, high reliability, and protection features like thermal shutdown and short protection. Its small HTSSOP-A44 package simplifies integration into space-constrained designs. Purchase now for robust sound performance, minimal pop noise, and easy synchronization, ensuring excellent audio quality in your next project.
Get ROHM BD5424EFS today—built for high-efficiency, space-saving stereo sound with low heat generation and reliable protection circuits.
Frequently Asked Questions
Where can I buy ROHM BD5424EFSE2?
You can click on the BUY or RFQ button to purchase BD5424EFSE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD5424EFSE2?
You can download the BD5424EFSE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD5424EFSE2?
ROHM
