ROHM 2SAR552PHZGT100 High-Speed Power Transistor
The 2SAR552P HZG is a high-speed, low saturation voltage transistor housed in a SOT-89 package, suitable for low frequency amplification and switching applications. It features a collector-base and collector-emitter voltage of -30V, with a collector current up to -3A, and is qualified under AEC-Q101 standards. Its low saturation voltage of around 200-400mV and transition frequency of 330MHz make it ideal for optimal switching performance in various electronic circuits, including amplifiers and power switching modules.
ROHM 2SAR552PHZGT100 High-Speed Power Transistor Specifications:
- Package: SOT-89
- Voltage Rating: Collector-base -30V, Collector-emitter -30V, Emitter-base 6V
- Maximum collector current: -3A, Power dissipation: 0.5W
- Power dissipation: 2.0W, Junction temperature: 150°C
- Storage temperature: -55°C to +150°C
- Transition frequency: 330MHz
- Collector cut-off current: 1.0pA at Vce = -30V
- Emitter cut-off current: 1.0pA at Ve = -4V
- Saturation voltage: 200-400mV at Ic = -1A
- Gain Bandwidth Product: 100MHz at Vce = -10V
- Output capacitance: 25pF
- Switching time: 35-210ns depending on conditions
- Mounting: Surface-mount on ceramic board, with tape width: 12mm, quantity: 1000 units

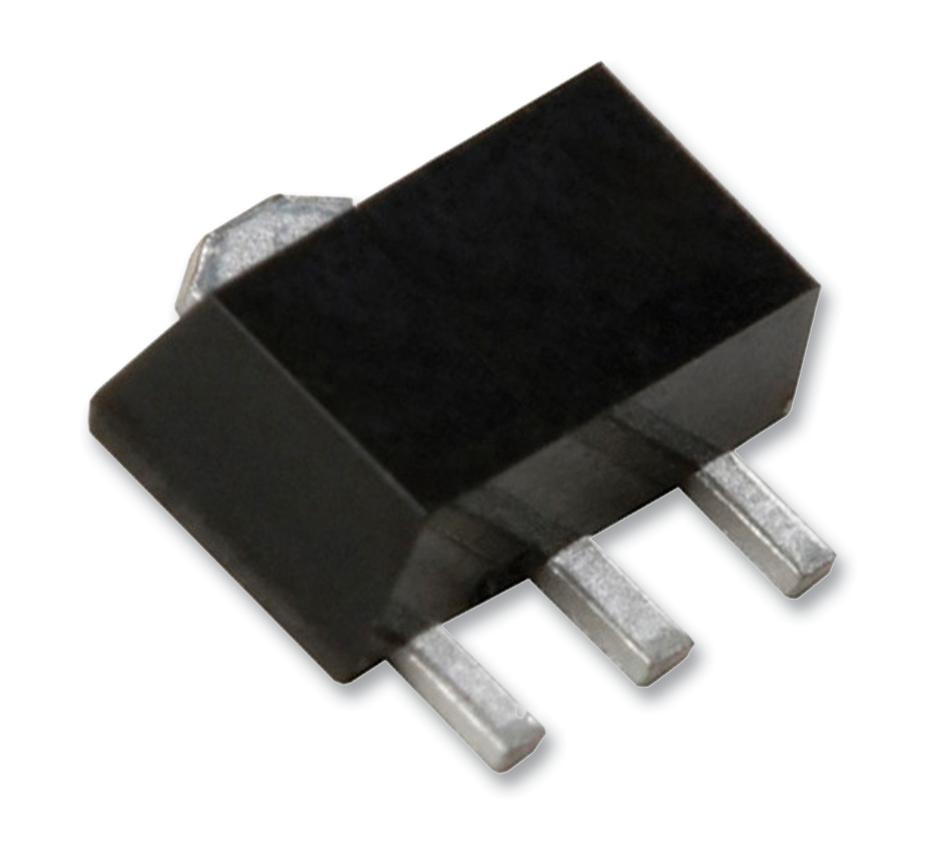

Buy the Buy ROHM 2SAR552P HZG Part Number 2SAR552PHZGT100 Online
Order the high-speed power transistor in SOT-89 package online today. Perfect for low frequency amplification and efficient switching, this component offers low saturation voltage, high transition frequency, and high current capacity. Designed for robust operation in demanding applications, the 2SAR552P HZG enhances circuit performance with its excellent switching characteristics and stability. Purchase now to ensure reliable operation in your devices, supported by ROHM's quality standards and comprehensive technical support.
Buy ROHM 2SAR552PHZGT100 now and experience unmatched reliability and high-speed switching performance in your electronic circuits.
Frequently Asked Questions
Where can I buy ROHM 2SAR552PHZGT100?
You can click on the BUY or RFQ button to purchase 2SAR552PHZGT100 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part 2SAR552PHZGT100?
You can download the 2SAR552PHZGT100 datasheet or visit the ROHM website for support.
Who is the manufacturer of 2SAR552PHZGT100?
ROHM
