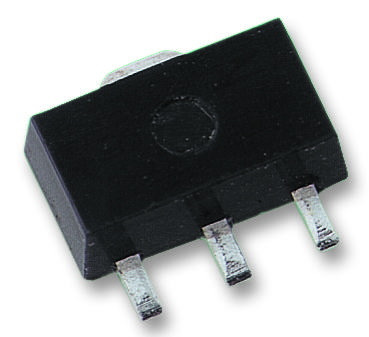

ROHM 2SAR553PHZGT100 Middle Power Transistor
The 2SAR553P HZG is a high-speed, low saturation voltage middle power transistor designed for low frequency amplifier and switching applications. It features a SOT-89 package, high DC current gain, and excellent switching performance, making it suitable for industrial and consumer electronic systems. Qualified under AEC-Q101, this transistor can operate at up to -50V collector-base and collector-emitter voltage with a maximum current of -2A. Its robust construction ensures reliability in demanding environments, combining efficiency and compactness for versatile electronic projects.
ROHM 2SAR553PHZGT100 Middle Power Transistor Specifications:
- Package Type: SOT-89
- Maximum collector-base voltage: -50V
- Maximum collector-emitter voltage: -50V
- Emitter-base voltage: 6V
- Maximum collector current: -2A
- Power dissipation: 0.5W
- Power dissipation (derated): 2.0W
- Junction temperature: 150°C
- Storage temperature: -55°C to +150°C
- DC current gain: 180 - 450
- Transition frequency: 320 MHz
- Output capacitance: 22 pF
- Saturation voltage (collector-emitter): 200 - 400 mV at Ic=-700mA, Ib=-35mA
- Base-emitter saturation voltage: 0.9 - 1.3 V at Ic=-700mA, Ib=-35mA
- Switching times: Turn-On time 45 ns, Storage time 220 ns, Fall time 35 ns
- Dimensions: Refer to package datasheet for detailed dimensions in mm/inches.
Buy the Buy ROHM 2SAR553P HZG Middle Power Transistor Part Number 2SAR553PHZG Online
Purchase the ROHM 2SAR553P HZG transistor online today and benefit from its high-speed switching, low saturation voltage, and robust design. Ideal for amplifiers and switching circuits, this high-quality power transistor is qualified under AEC-Q101 standards, ensuring dependable operation in industrial and consumer electronics. Its compact SOT-89 package and excellent thermal performance make it easy to implement in your designs, providing efficiency, reliability, and versatility for a wide range of applications. Don't miss this opportunity to upgrade your electronic systems with this proven component.
Order your ROHM 2SAR553P HZG middle power transistor today and enhance your projects with reliable high-speed switching and low saturation voltage performance.
Frequently Asked Questions
Where can I buy ROHM 2SAR553PHZGT100?
You can click on the BUY or RFQ button to purchase 2SAR553PHZGT100 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part 2SAR553PHZGT100?
You can download the 2SAR553PHZGT100 datasheet or visit the ROHM website for support.
Who is the manufacturer of 2SAR553PHZGT100?
ROHM
