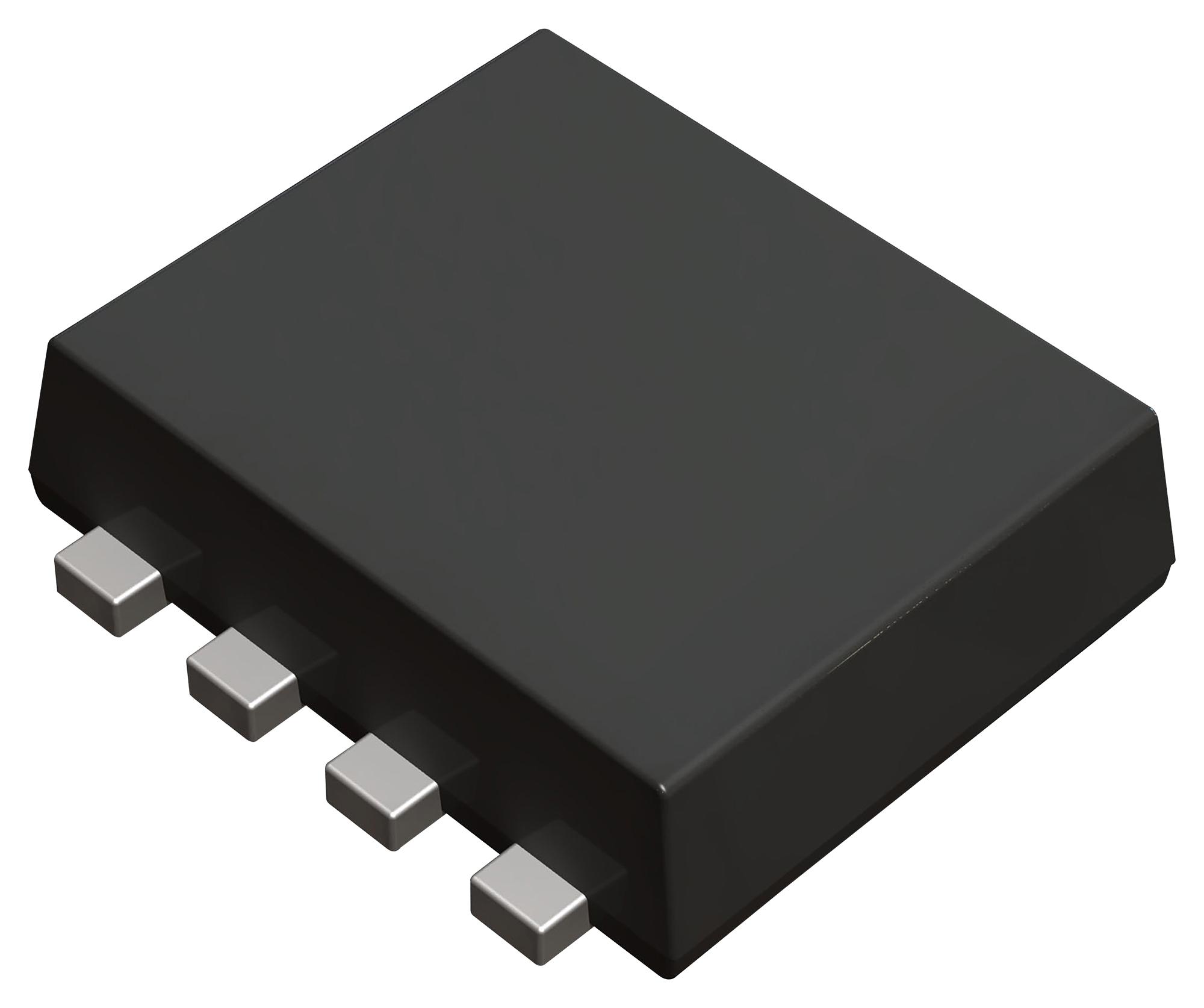

ROHM RQ7L050ATTCR Power MOSFET
The RQ7LO50AT is a low-profile small signal power MOSFET designed for switching applications. It features a drain-source voltage of -60V, continuous drain current of 5A, and pulsed current up to 20A. Packaged in the compact TSMT8 surface mount form, it offers low on-resistance, high reliability, and RoHS compliance. Suitable for various electronic circuits requiring efficient switching voltage control, this MOSFET provides excellent thermal performance with a maximum junction temperature of 150°C. It is ideal for space-constrained power management and switching applications demanding high efficiency.
ROHM RQ7L050ATTCR Power MOSFET Specifications:
- Drain-Source Voltage: -60V
- Continuous Drain Current: 5A
- Pulsed Drain Current: 20A
- Power Dissipation: 15W
- Junction Temperature Range: -55°C to +150°C
- Thermal Resistance (junction-ambient): Max 113°C/W
- Gate-Source Voltage: ±20V
- Body Diode Forward Voltage: Max 1.2V at 1.25A
- Gate Threshold Voltage: -1.0V to 2.5V
- On-Resistance (Rds(on)): 35 to 44 mΩ at Vgs=4.5V, Id=5A
- Package Type: TSMT8
- Reel Size: 180mm, Tape Width: 8mm, Quantity: 3000 pcs
Buy the ROHM Series RQ7L050AT Power MOSFET: -60V, 5A, TSMT8 Part
Purchase the ROHM RQ7L050AT power MOSFET online today and equip your electronic circuits with a low-voltage, high-current switching component. Designed for space-efficient applications, this MOSFET offers low Rds(on), high durability, and RoHS compliance, making it ideal for power management, switching, and load control in various electronic devices. Secure fast delivery and excellent value, ensuring your project achieves optimal performance with dependable, compact power components tailored for demanding industrial and consumer electronics.
Order your ROHM Series RQ7L050AT power MOSFET today and ensure your electronic projects benefit from high efficiency and reliable switching performance.
Frequently Asked Questions
Where can I buy ROHM RQ7L050ATTCR?
You can click on the BUY or RFQ button to purchase RQ7L050ATTCR from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RQ7L050ATTCR?
You can download the RQ7L050ATTCR datasheet or visit the ROHM website for support.
Who is the manufacturer of RQ7L050ATTCR?
ROHM
