ROHM 2SCR544PHZGT100 Power Transistor
The 2SCR544P HZG is a high-speed, low-saturation power transistor suitable for low-frequency amplifiers and switching applications. Encased in a compact SOT-89 package, it features an 80V collector-base voltage, 2.5A collector current capability, and high-speed switching performance. Qualified under AEC-Q101 standards, it provides reliable operation with low saturation voltage and excellent switching characteristics. Its robust design ensures durability in various industrial applications, including power management and electronic control systems, making it a versatile choice for demanding electronic circuits.
ROHM 2SCR544PHZGT100 Power Transistor Specifications:
- Package: SOT-89
- Package size code: 4540
- Taping: T100
- Reel size: 180 mm
- Tape width: 12 mm
- Quantity: 1000 pcs
- Collector-base voltage: 80 V
- Collector-emitter voltage: 80 V
- Emitter-base voltage: 6 V
- Collector current: 2.5 A
- Power dissipation: 2.0 W
- Power package: Pp 0.5 W
- Junction temperature: 150°C
- Storage temperature range: -55°C to +150°C
- Transition frequency: 280 MHz
- Collector-emitter saturation voltage: 100-300 mV
- Gain: 120-390 (DC current gain)
- Rise time: 50 ns
- Fall time: 40 ns
- Output capacitance: 16 pF

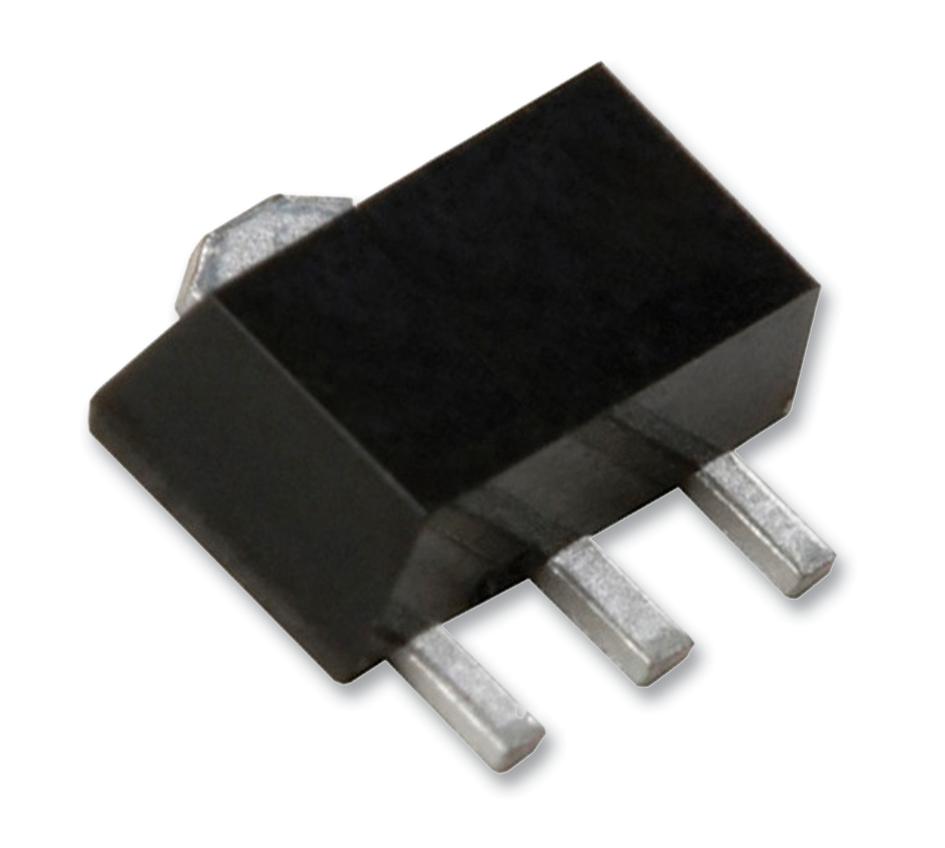

Buy the ROHM Series MPT3 Power Transistor: 2SCR544PHZGT100
Enhance your electronic projects with the ROHM 2SCR544PHZGT100 power transistor, designed for high-speed switching and low saturation voltage. It provides 80V collector-base voltage and 2.5A current capacity, suitable for power management, amplifiers, and switching circuits. Packaged in a compact SOT-89 form with a reel of 1000 units, ensuring easy integration into automated assembly. Its robust construction and proven performance make it ideal for demanding industrial and consumer electronic applications, offering reliable operation and longevity.
Buy ROHM 2SCR544PHZGT100 power transistor now and experience unmatched reliability and performance in high-speed switching applications.
Frequently Asked Questions
Where can I buy ROHM 2SCR544PHZGT100?
You can click on the BUY or RFQ button to purchase 2SCR544PHZGT100 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part 2SCR544PHZGT100?
You can download the 2SCR544PHZGT100 datasheet or visit the ROHM website for support.
Who is the manufacturer of 2SCR544PHZGT100?
ROHM
