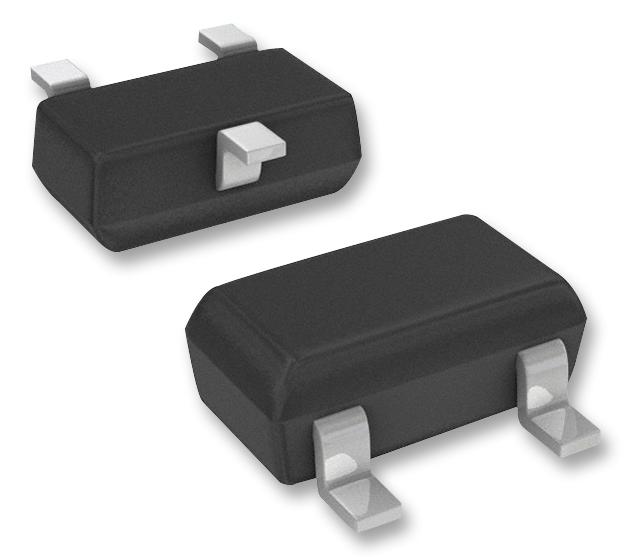

ROHM RB706D40FHT146 Schottky Diode
The RB706D-40FH is a high-reliability Schottky barrier diode designed for automotive and industrial applications, featuring low capacitance and fast switching capabilities. Packaged in SOT-346, it supports up to 30 mA average forward current and 40 V reverse voltage, with low forward voltage and minimal reverse leakage. Suitable for high-speed switching, the diode withstands high temperature and offers excellent durability. Its small package makes it ideal for compact, high-performance circuits requiring efficient power rectification and low noise characteristics.
ROHM RB706D40FHT146 Schottky Diode Specifications:
- Package Code: SOT-346
- VR: 40 V
- JEITA Code: SC-58
- Reverse voltage VR: 40 V
- Average rectified forward current Io: 30 mA
- Peak forward surge current lrsu: 0.2 A
- Junction temperature Tj: -125 °C
- Storage temperature Tstg: -40 ~ 125 °C
- Forward voltage VE: 0.37 V at IF=1mA
- Reverse current IR: 1 pA at VR=10V
- Capacitance between terminals: 2 pF at VR=1V, 1MHz
- Maximum repetitive peak reverse voltage VRM: 45 V
- Peak forward surge current: 0.2 A
- Material: Glass epoxy substrate, copper-layered
- Dimensions: Length 3.9–4.3 mm, Width 2.0–2.2 mm, Height 1.5–2.1 mm (approximate)
- Package features: Small mold type, suitable for surface mounting, high reliability in harsh environments
Buy the Buy ROHM RB706D-40FH Schottky Barrier Diode Part Number RB706D40FH Online
Secure your ROHM RB706D-40FH Schottky barrier diode online today. Featuring low capacitance, high reliability, and fast switching capabilities in a compact SOT-346 package, it is ideal for automotive and industrial applications. This diode supports a maximum reverse voltage of 40 V, with an average forward current of 30 mA. Its small size and durability make it perfect for high-speed switching circuits requiring low noise and excellent heat resistance, ensuring your projects operate efficiently and reliably.
Order your ROHM RB706D-40FH Schottky barrier diode today and ensure fast switching and low noise performance for your automotive or industrial circuits.
Frequently Asked Questions
Where can I buy ROHM RB706D40FHT146?
You can click on the BUY or RFQ button to purchase RB706D40FHT146 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RB706D40FHT146?
You can download the RB706D40FHT146 datasheet or visit the ROHM website for support.
Who is the manufacturer of RB706D40FHT146?
ROHM
