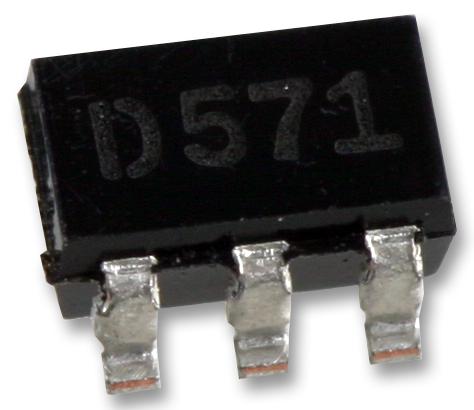

ROHM BD22441GCTR High Side Switch
The BD22441G-C is a compact high-side switch IC featuring low on-resistance N-channel MOSFETs optimized for USB and automotive applications. It offers adjustable over-current threshold from 0.2A to 1.7A, thermal shutdown, undervoltage lockout, and soft-start. The device supports bidirectional current flow, reverse current protection, and open-drain fault indication, making it suitable for car accessories and power management in compact designs. Its robust electrostatic and thermal protections ensure reliable operation across -40°C to +125°C temperature range, with power dissipation suitable for sealed module environments.
ROHM BD22441GCTR High Side Switch Specifications:
- Operating Voltage: 2.8V to 5.5V
- On-Resistance: 100mΩ (Typ, VIN=5V)
- Adjustable Current Limit Threshold: 0.2A to 1.7A
- Standby Current: 0.01 μA (Typ)
- Operating Temperature Range: -40°C to +125°C
- Package: SSOP6
- Reverse Current Protection: Yes
- Thermal Shutdown: Yes
- Under-Voltage Lockout: Yes, threshold around 2.55V
- Discharge Output Resistance: 60Ω to 180Ω
- Fault Flag /OC Open-Drain Output
- Power Dissipation: Up to 0.671W (mounted on a 70mm x 70mm x 1.6mm board)
Buy the ROHM Series High Side Switch: BD22441G-C
Order the ROHM BD22441G-C high-side switch IC online today to ensure stable and efficient power management in your automotive or USB device. This IC provides adjustable over-current thresholds from 0.2A to 1.7A, thermal and electrical protections, and operates over -40°C to +125°C. Its compact SSOP6 package saves space, making it ideal for tight electronic designs. Benefit from high reliability, fast response, and easy integration with built-in fault flag output—perfect for professional engineers seeking dependable power solutions.
Buy ROHM BD22441G-C now and experience unmatched reliability and performance in power switching for automotive and USB applications.
