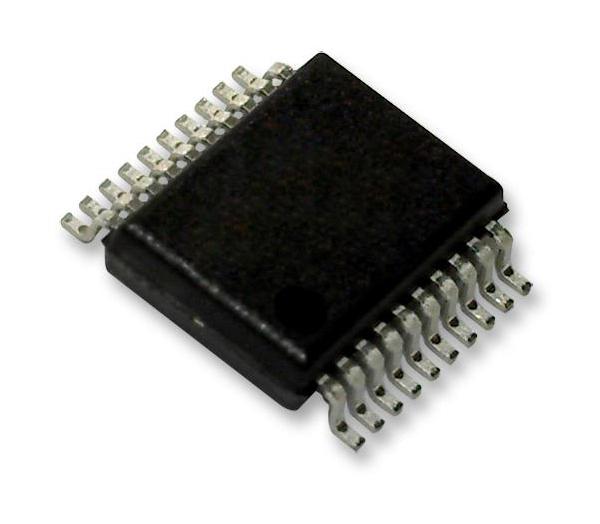

ROHM BD37512FSE2 Sound Processor
The BD37512FS is a high-quality sound processor designed for car audio systems, incorporating a built-in 2-band equalizer, input selector, gain control, and volume adjustment features. Utilizing ROHM's advanced switch circuit technology, it significantly reduces switching noise during tone and volume changes. The device offers differential and single-ended inputs, ground isolation amplifiers, and supports control via I²C bus with 3.3V/5V logic. Its energy-efficient design ensures low current consumption, making it ideal for automotive audio, mini, and micro systems requiring reliable sound processing with minimal noise and high sound quality.
ROHM BD37512FSE2 Sound Processor Specifications:
- Power Supply Voltage Range: 7.0V to 9.5V
- Circuit Current (No Signal): 15mA (Typ)
- Total Harmonic Distortion: 0.005%(Typ)
- Maximum Input Voltage: 2.3Vrms (Typ)
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 8.70mm x 7.80mm x 2.01mm
- Package: SSOP-A20
- Weight: Approximate and based on package size
- Control: I²C bus compatible, 3.3V/5V logic
- Gain Adjustment: Up to +20 dB in 1 dB steps
- Bass & Treble Gain: ±20 dB in 1 dB steps
- Muting: External mute control terminal
- Input Impedance: 70kΩ to 130kΩ (A, B, C), 35kΩ to 65kΩ (D)
- Noise Voltage: 6µVrms (Typ)
- Supports differential and single-ended inputs
- Includes ground isolation amplifiers
- Supports mute, volume, fader, bass, and treble adjustments
Buy the Buy ROHM BD37512FS Part Number 2015126 Online
Enhance your car or audio system with the advanced ROHM sound processor offering integrated 2-band equalizer, low noise switching, differential inputs, and low power consumption. Its compact SSOP-A20 package ensures easy integration into various devices like mini and micro audio systems, TV, or automotive entertainment units. Featuring precise gain control, adjustable bass and treble, and compatibility with 3.3V/5V I²C bus control, it guarantees excellent sound quality, noise reduction, and reliable operation. Purchase online today for superior sound experience.
Buy ROHM BD37512FS now and experience unmatched reliability and high-quality sound processing in automotive and audio equipment.
Frequently Asked Questions
Where can I buy ROHM BD37512FSE2?
You can click on the BUY or RFQ button to purchase BD37512FSE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD37512FSE2?
You can download the BD37512FSE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD37512FSE2?
ROHM
