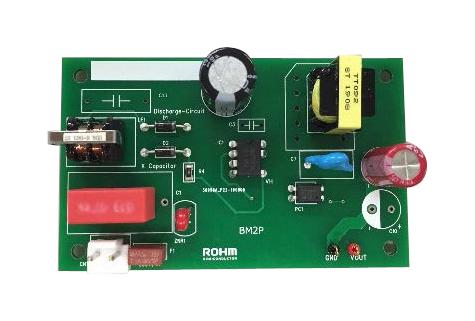

ROHM BM2P26CKEVK001 Flyback Converter Module
The BM2P26CK-EVK-001 is an evaluation board featuring the BM2P26CK-Z, an AC/DC flyback converter in PWM mode with integrated 800 V MOSFET. It supports an output of 5 V at up to 0.5 A from 90 Vac to 264 Vac input voltage, offering high efficiency and low power consumption with built-in frequency hopping for EMI reduction. Including safety features, adjustable parameters, and comprehensive EMI measures, this board is ideal for household appliances, power adapters, and industrial applications requiring reliable performance and compact design.
ROHM BM2P26CKEVK001 Flyback Converter Module Specifications:
- Input Voltage Range: 90 Vac to 264 Vac
- Output Voltage: 5 V
- Maximum Output Current: 0.5 A
- Switching Frequency: 100 kHz
- Power Efficiency: 65% to 71%
- Output Ripple Voltage: 60 mV
- Operating Temperature Range: -10°C to +25°C
- VCC Pin Voltage: 11.9 V to 25.5 V
- DRAIN Pin Voltage: 800 V (Max)
- Switching Power Consumption: 0.60 mA (Typ)
- Package Size: 55 mm x 90 mm
- Supports EMI measures with input filter and X capacitor
- Built-in soft start, frequency hopping, burst mode at light load, and overcurrent detection
- High-voltage tolerant super junction MOSFET with Rds(on): 6.0 Q
Buy the ROHM Series BM2P26CK Evaluation Board: AC/DC Flyback Converter 5V 0.5A
Purchase the ROHM BM2P26CK Evaluation Board online now to ensure optimal performance for your household or industrial power supply projects. This high-efficiency AC/DC converter supports 5V output at 0.5A, with advanced safety features, EMI mitigation, and flexible configuration options. Designed for easy integration into various applications, it offers a compact size of 55mm x 90mm, supporting reliable operation across a wide input voltage range and ensuring compliance with global standards. Order today for rapid delivery and expert support.
Get ROHM BM2P26CKEVK001 today—engineered for high efficiency, safety, and reliable power conversion in compact design.
Frequently Asked Questions
Where can I buy ROHM BM2P26CKEVK001?
You can click on the BUY or RFQ button to purchase BM2P26CKEVK001 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BM2P26CKEVK001?
You can download the BM2P26CKEVK001 datasheet or visit the ROHM website for support.
Who is the manufacturer of BM2P26CKEVK001?
ROHM
