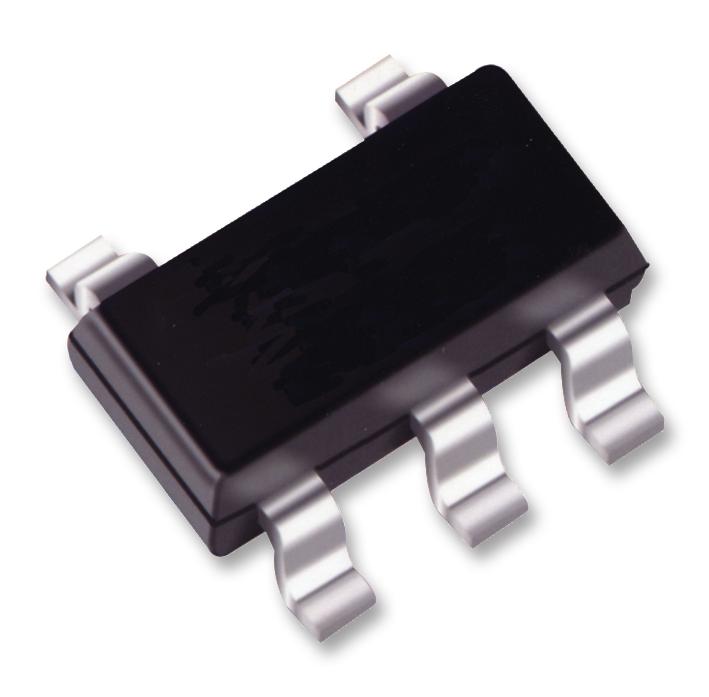

ROHM BD4833GTR Voltage Detector IC
The BD4833GTR is a high-accuracy voltage detector IC designed to monitor voltage levels with detection voltages ranging from 2.3V to 6.0V in 0.1V steps. It features ultra-low current consumption of 0.9μA (Typ.), with options for open drain or CMOS output types. Suitable for circuits requiring system reset, microcontroller power detection, and noise filtering, it operates within -40°C to +105°C, housed in compact SSOP packages, making it ideal for reliable power management and digital circuit protection.
ROHM BD4833GTR Voltage Detector IC Specifications:
- Detection voltage: 2.3V to 6.0V in 0.1V steps
- Operating temperature: -40°C to +105°C
- Current consumption: Typ. 0.9μA
- Package: SSOP5, SSOP3
- Output types: Nch open drain and CMOS
- Detection accuracy: ±0.05V across temperature range
- Size: SSOP5 (2.90mm x 2.80mm x 1.25mm), SSOP3 (2.92mm x 2.80mm x 1.25mm)
- Power supply voltage (Vop): 2.3V to 6.0V
- Hysteresis voltage: 0.03V to 0.08V
- Integrated circuit: Silicon monolithic IC, RoHS compliant
Buy the ROHM BD4833GTR – Reliable Voltage Detector for Industrial Applications
Secure your power management system with the ROHM BD4833GTR voltage detector IC. Designed for precision detection from 2.3V to 6.0V, it offers ultra-low current consumption of 0.9μA and comes in small SSOP packages, ideal for microcontroller reset circuits and noise filtering. Reliable and RoHS compliant, this device ensures stable operation across a wide temperature range. Purchase online today and integrate high-precision voltage detection into your industrial systems for improved performance and power efficiency.
Order your ROHM BD4833GTR voltage detection IC today and enhance your circuit stability with ultra-low power and high accuracy in compact packages.
Frequently Asked Questions
Where can I buy ROHM BD4833GTR?
You can click on the BUY or RFQ button to purchase BD4833GTR from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD4833GTR?
You can download the BD4833GTR datasheet or visit the ROHM website for support.
Who is the manufacturer of BD4833GTR?
ROHM
