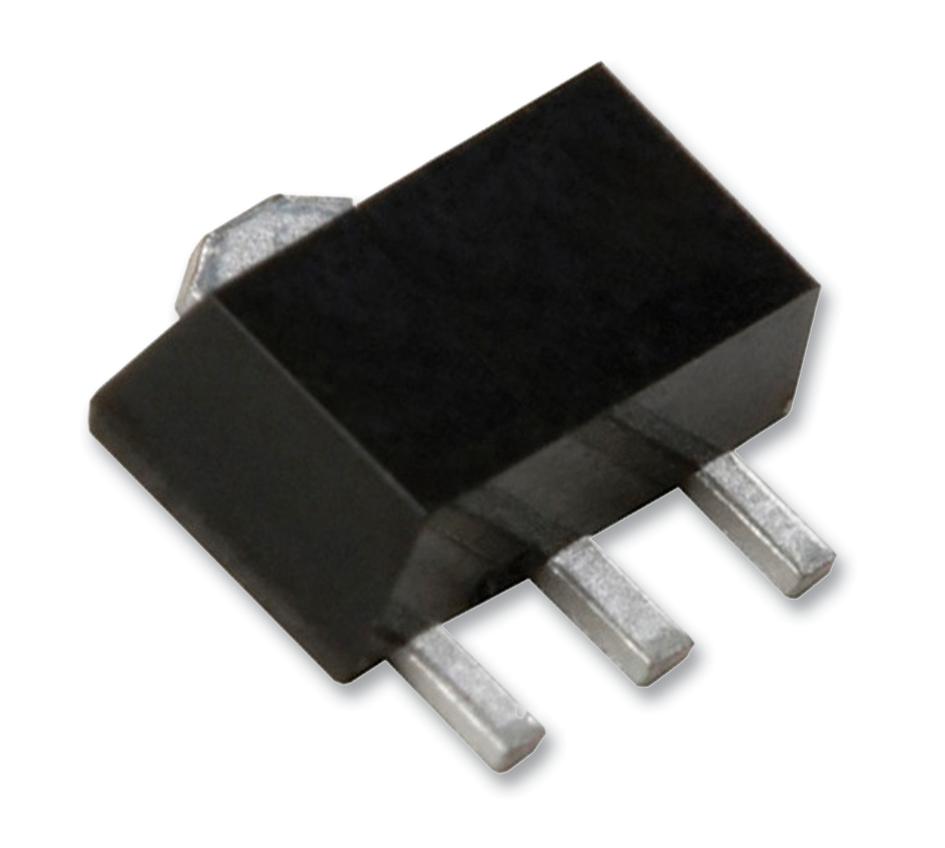

ROHM 2SCR533P5T100 Middle Power Transistor
The ROHM 2SCR533P5T100 is a middle power transistor designed for low frequency amplification and high-speed switching applications. This transistor offers a low saturation voltage (typically 350mV at IC/IB=1A/50mA) and high-speed switching capabilities, making it suitable for a wide range of industrial applications including amplifiers and switching circuits. It is packaged in a SOT-89 format and is ROHS compliant. Ensure proper heat dissipation and operating conditions for optimal performance.
ROHM 2SCR533P5T100 Middle Power Transistor Specifications:
- VCEO: 50V
- IC: 3A
- Package: SOT-89
- Taping code: T100
- Reel size: 180mm
- Tape width: 12mm
- Basic ordering unit: 1000
- VCBO: 50V
- VEBO: 6V
- ICP: 6A
- PD: 0.5W
- Tj: 150°C
- Tstg: -55 to +150°C
- BVCBO: 50V
- BVCEO: 50V
- ICBO: 1.0μA
- IEBO: 1.0μA
- VCE(sat): 350mV
- hFE: 180-450
- fT: 320MHz
- Cob: 13pF
- ton: 50ns
- tstg: 450ns
- tf: 80ns
