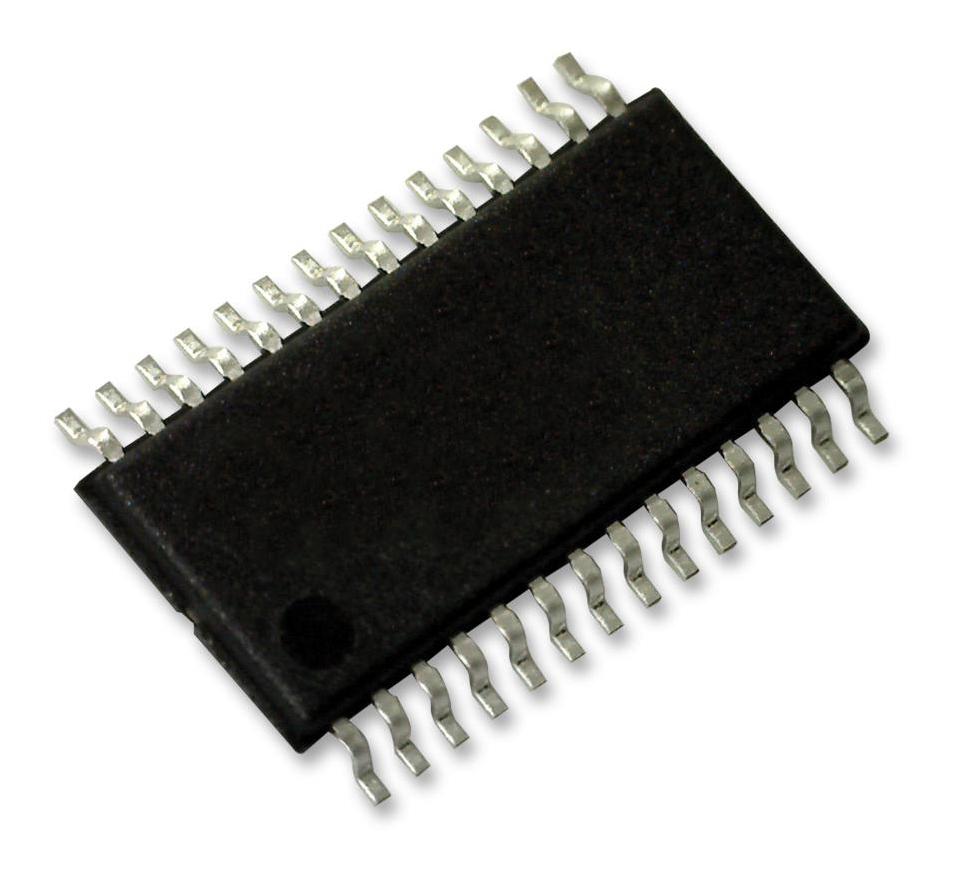

ROHM BD63520AEFVE2 Micro Step Stepping Motor Driver
The ROHM BD63520AEFV-E2 is a versatile stepping motor driver designed for applications requiring precise motor control. It operates on a 36V power supply and delivers up to 2.0A of continuous current, with a peak current capability of 2.5A. The driver supports various step modes (full, half, quarter, and sixteenth) and offers adjustable current decay for optimized motor performance. Integrated features like spike noise cancellation, over-current protection, and thermal shutdown enhance reliability and simplify system design. Common applications include printers, cameras, sewing machines, and robotics.
ROHM BD63520AEFVE2 Micro Step Stepping Motor Driver Specifications:
- General Description: Stepping motor driver for 1/16 micro step drive, bipolar PWM constant current-drive with 36V power supply and 2.0A output current.
- Supply Voltage: 8～28 V
- Rated Output Current: 2.0 A
- Rated Output Current (peak): 2.5 A
- Operating Temperature Range: -25～+85 ℃
- Package: HTSSOP-B28 (9.70mm x 6.40mm x 1.00mm)
- Input Voltage for Control Pin: 0～+5.5 V
- Circuit Current at Standby: ≤10 uA
- Circuit Current: ≤4.5 mA
- Output ON Resistance (total): ≤0.65 Ω (Typ)
- Power Dissipation: 1.45 W (70mm×70mm×1.6mm glass epoxy board)
- Junction Temperature: +150 °C
Buy the BD63520AEFV-E2 ROHM Micro Step Stepping Motor Driver | myMectronic
Purchase the ROHM BD63520AEFV-E2 stepping motor driver securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy ROHM BD63520AEFVE2?
You can click on the BUY or RFQ button to purchase BD63520AEFVE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD63520AEFVE2?
You can download the BD63520AEFVE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD63520AEFVE2?
ROHM
